【S】SIDE BEVEL RULE
Cutting Rules

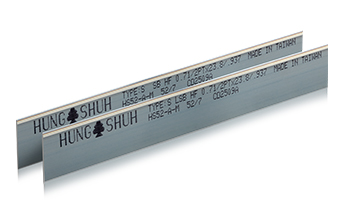

Side Bevel Rule ★Off-center tip design
01. Straight cutting surface and precise cutting point.
02. Suitable for thick materials.
Applications: Sticky Notes, Leathers, cushion packaging(EVA & EPE),
luxury box, food container and Facial Masks

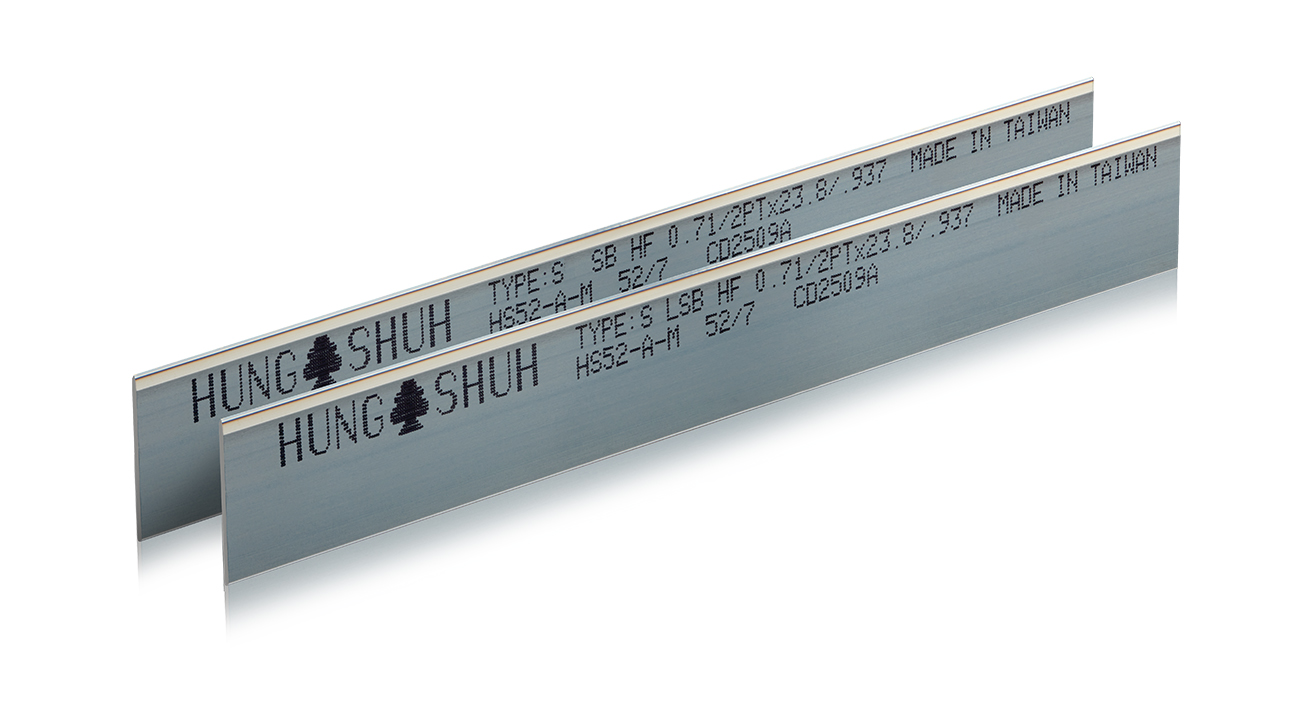

Side Bevel Rule |
| TYPE | S |
|---|---|

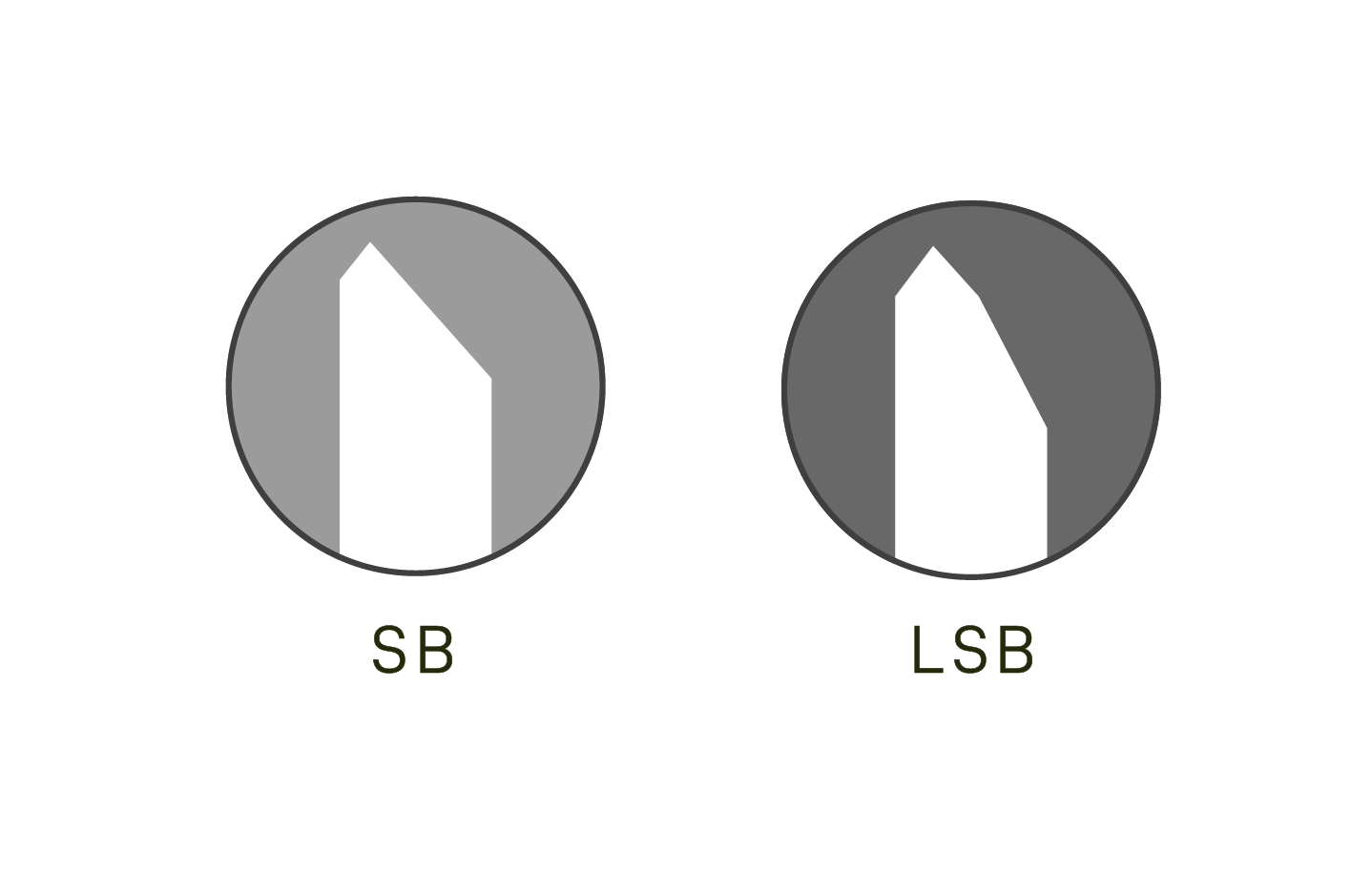

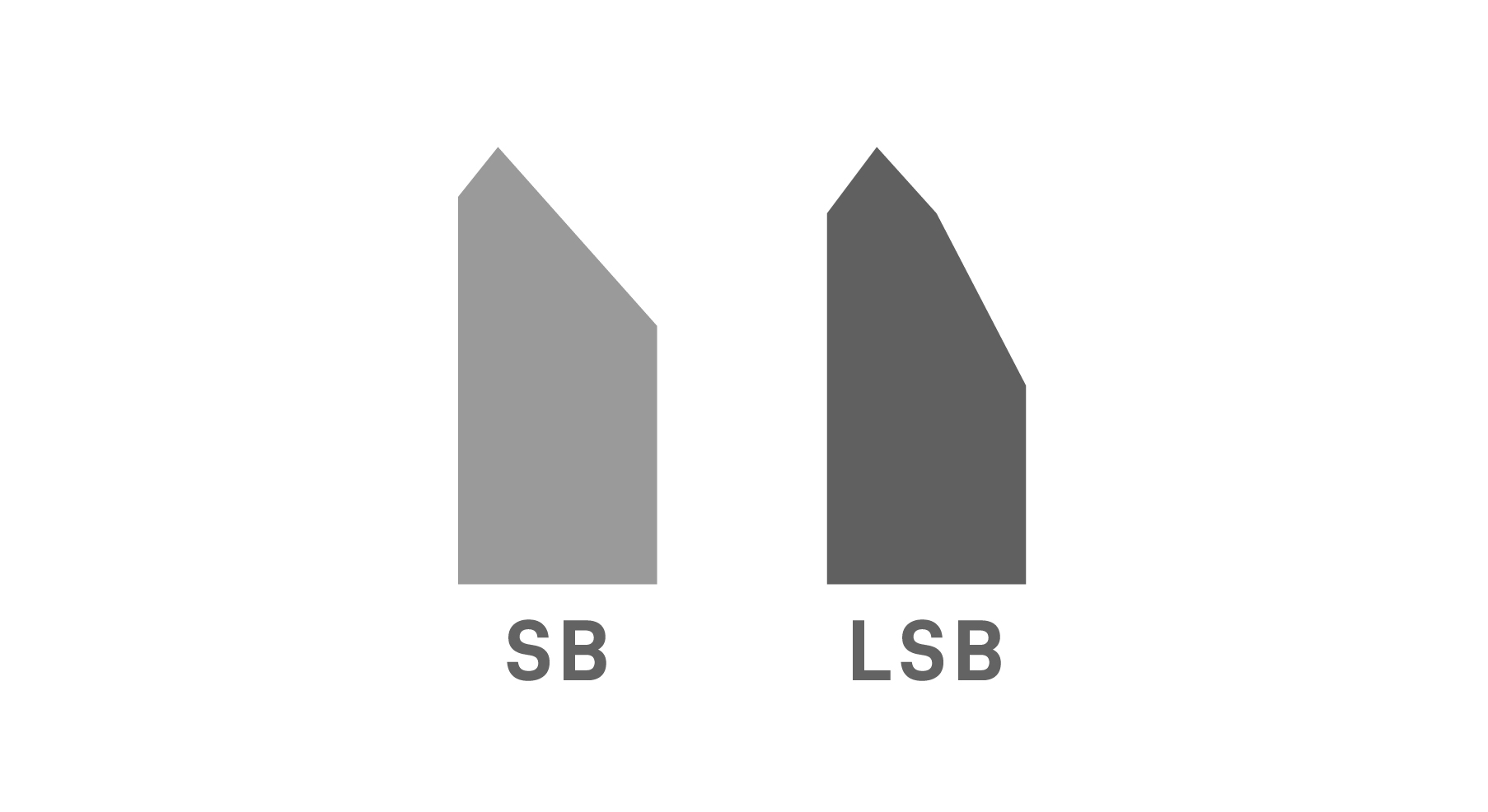

| Bevel type | SB (Side bevel) , LSB (Long Side bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、51°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
► For more blade types and detailed specifications, please refer to the Hung Shuh Cutting Rules Catalog
► Further Reading : Is a Harder Blade Tip More Durable?
► Recommended Reading : Exploring Flatbed Die Cutting: Techniques and Applications
► Further Reading : Is a Harder Blade Tip More Durable?
► Recommended Reading : Exploring Flatbed Die Cutting: Techniques and Applications
Tags：
- Electronics．Displays．Screen Protectors．Advanced Materials
- Plastic Packaging．Blister Packaging．PP Sheets．Plastic Films
- Food Containers．Packaging Boxes．Corrugated Boxes．Cigarette box
- Washers Gasket．Industrial Fabrics．Industrial Sponges．Household Sponges
- Textiles．Leather．Filters．Nonwoven Fabrics．Wool Blankets
- Pharmaceutical Packaging．Medical Supplies．Aluminum Foil
- Stationery．Stickers．Puzzles．Daily essentials
Plastic Packaging Containers
Type S
Tempered glass protector
Type S
Aluminum-Foil (Alu-Alu)
Type S
Capsule Blister Packaging
Type S
Non-Woven Fabric, Felt
Type S

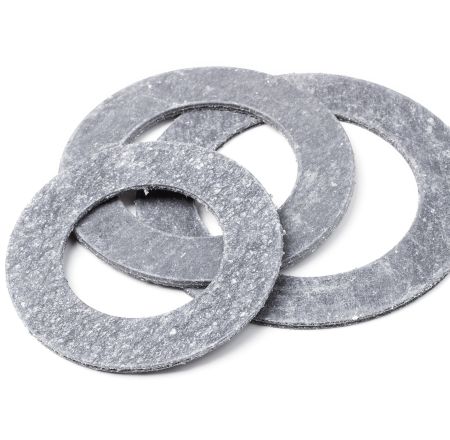

Seal, Gasket, Packing
Type S
Leather, Synthetic leather
Type S

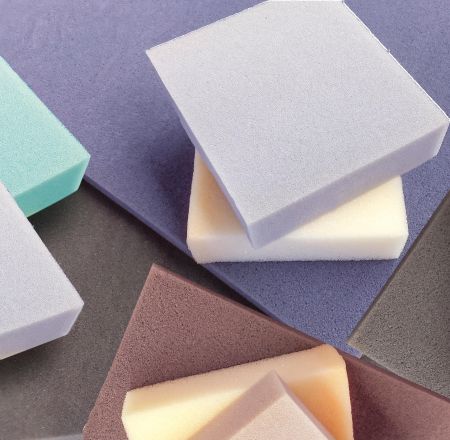

Cushion, Sponge
Type S
Laminated paper
Type S
Premium Packaging Boxes
Type S
Medical box
Type S
