【H】HIGH RULE
Cutting Rules

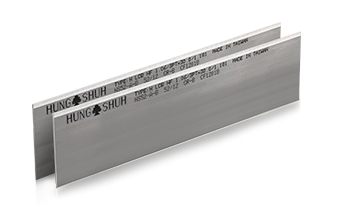

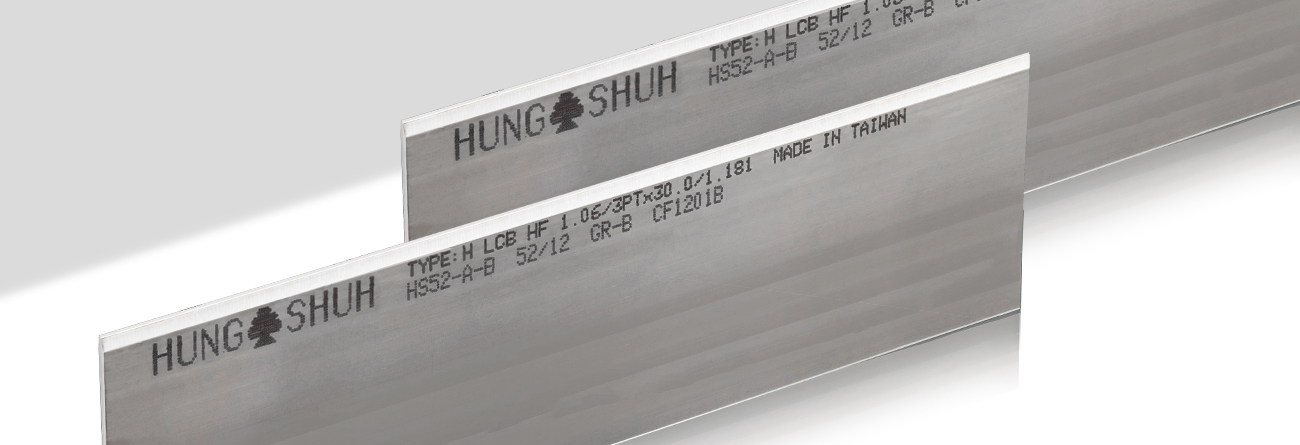

High Rule
・Can cut a diverse range of materials, particularly those that are thicker in nature.
・Various heights are available.
Applications:
EVA, Sponges, and Cushion Packagings
・Various heights are available.
Applications:
EVA, Sponges, and Cushion Packagings

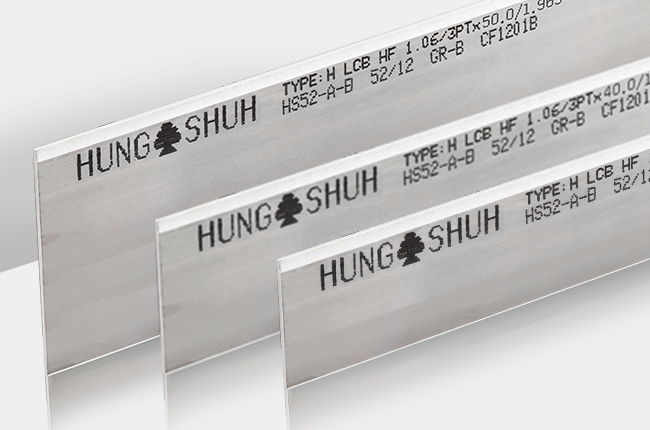

Hight Rule |
| TYPE | H |
|---|---|

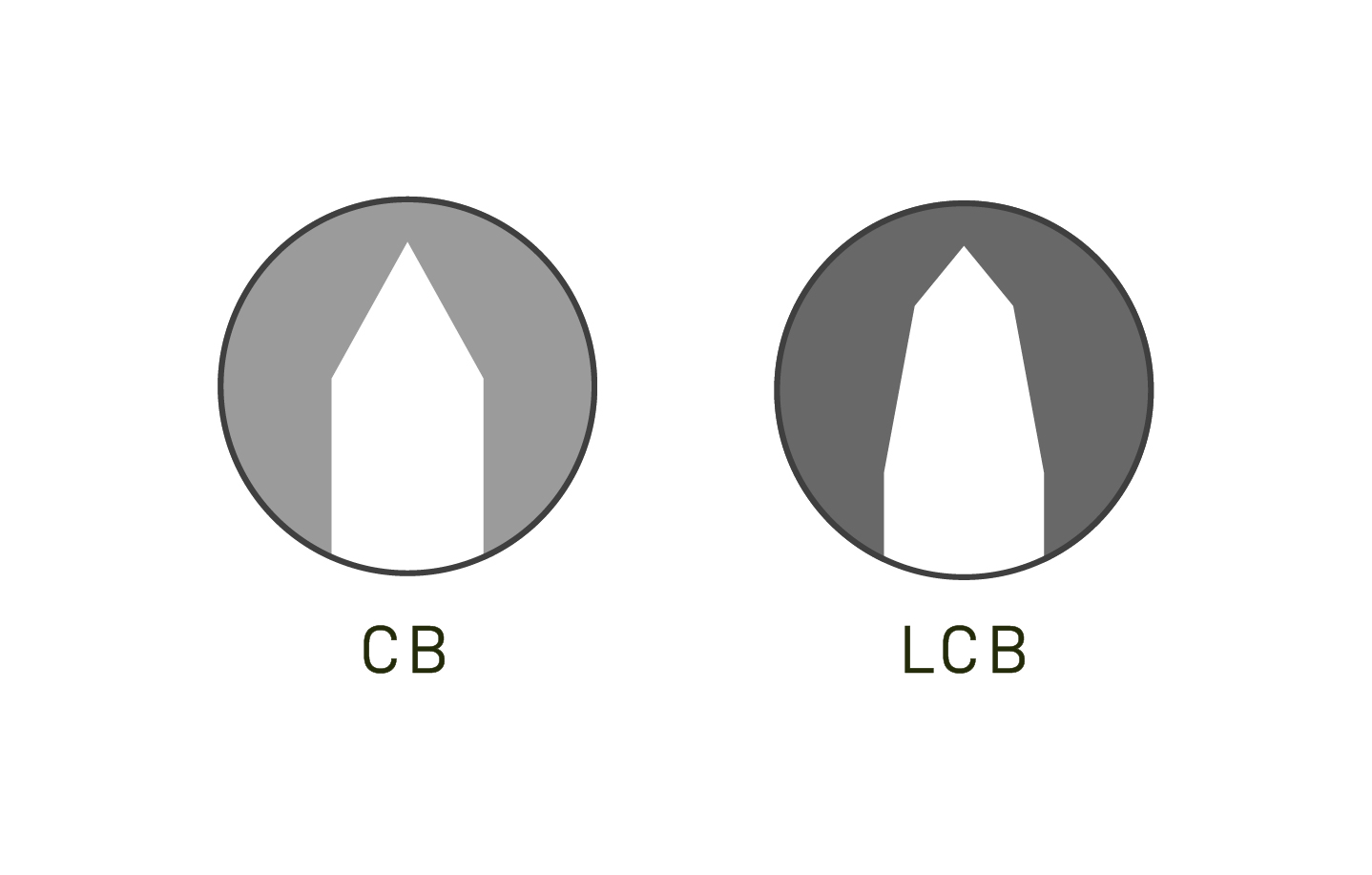

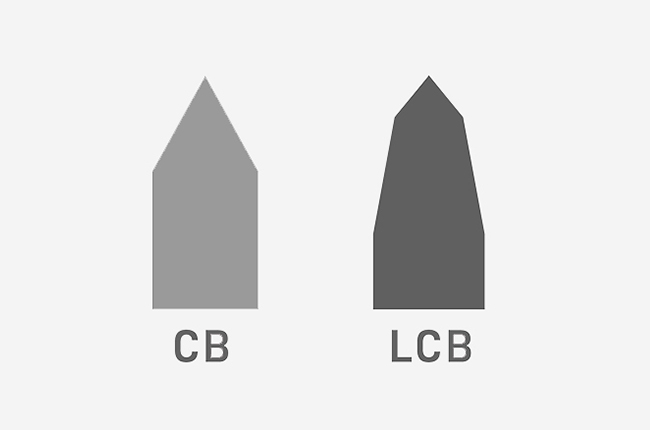

| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 30mm (1.181"), 32mm (1.26"), 35mm (1.377"), 40mm (1.574"), 50mm(1.968") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
