HOME 【S】SIDE BEVEL RULE Laminated paper

Cutting Rules

Laminated paper

Our Recommendation
Type SG、Type GR、Type S、Type E

Characteristic

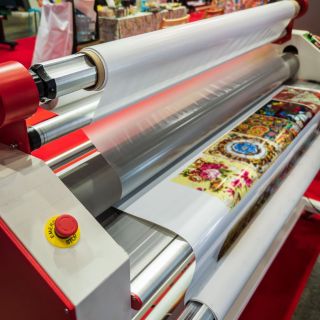

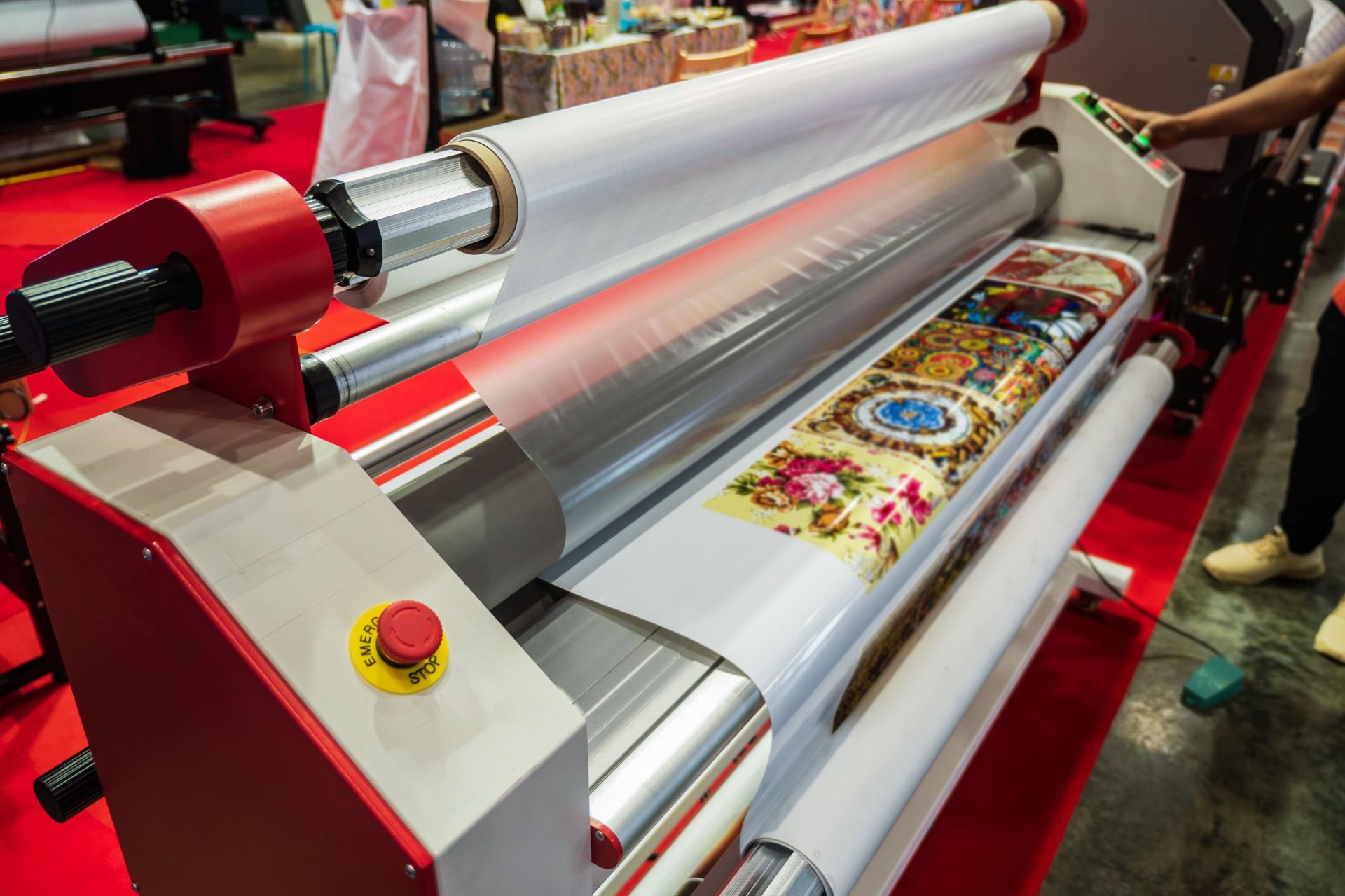

Since laminated paper is made of laminates such as PP and PE, it must be cut with a sharp and abrasive grinding knife [GR] and precision grinding [SG] to prevent paper powder and burrs from forming in the finished product.
Share:
type S

Type S - Side Bevel Rule

・Straight cutting surface and precise cutting point.
・Suitable for thick materials.

Applications:
Sticky Notes, Leathers, EVA, EPE, Puzzles and Facial Masks

Super Ground Rule

TYPE SG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Ground Rule

TYPE GR
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Side Bevel Rule

TYPE S
Bevel type SB (Side bevel) , LSB (Long Side bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、51°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Creasing Rule

TYPE E
Bevel type DR (Double Round) / SR (Single Round) / SF (Special facet)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897"),  23.10mm(.909")
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
