【GR】GROUND RULE
Cutting Rules
Ground Rule
・Significantly reducing cutting force.
・Reduce dusting and angel hair.
・Offer clear and precise cut.
・Suitable for hard or elasticity material.
Applications:
EVA, Sponge, plastic packaging, Laminated paperboards, Gray card, Recycled paper box, corrugated carton and Leathers
Ground Rule |
| TYPE | GR |
|---|---|

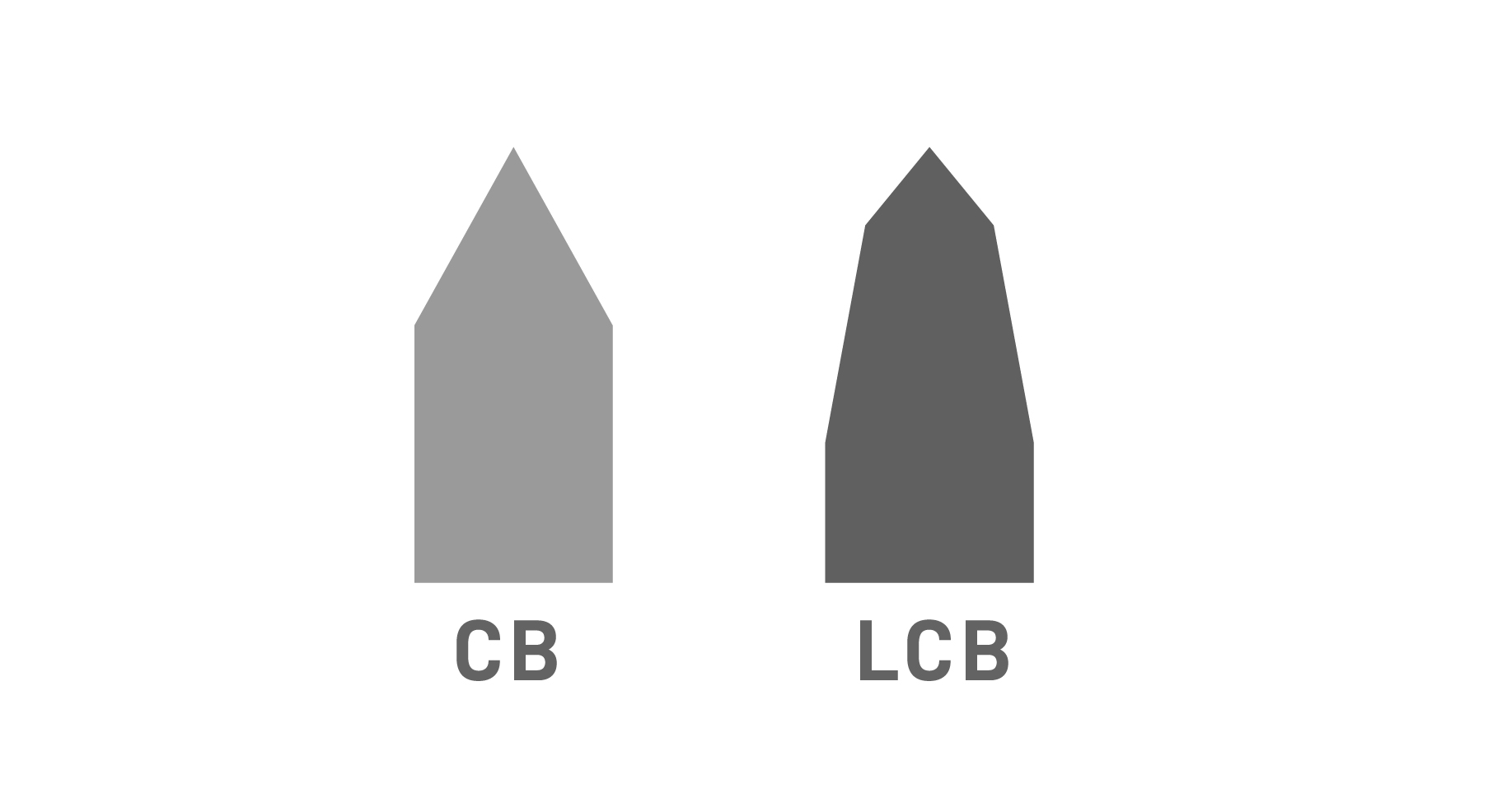

| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.45mm (1.27pt/1.3pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
► For more blade types and detailed specifications, please refer to the Hung Shuh Cutting Rules Catalog
► Related Reading : Is a Harder Blade Tip More Durable? Hung-Shuh Tell You Choose Right
► Further Reading : Steel Cutting Rules Guide: Advantages & FAQ
► Related Reading : Is a Harder Blade Tip More Durable? Hung-Shuh Tell You Choose Right
► Further Reading : Steel Cutting Rules Guide: Advantages & FAQ
Cigarette box, Pillbox
Type GR
Seal, Gasket, Packing
Type GR
Textile fabric
Type GR

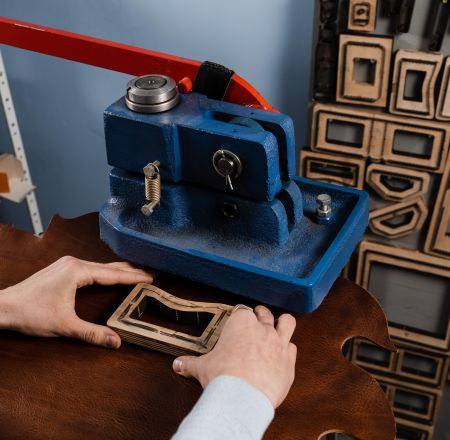

Leather, Synthetic leather
Type GR
Blister pack / Blister-Polyester
Type GR
Paper tableware container
Type GR
Non-Woven Fabric, Felt
Type GR
Corrugated Paper/Box
Type GR
Color box
Type GR
Puzzle
Type GR
Laminated paper
Type GR
Cushion, Sponge
Type GR
