HOME 【GR】GROUND RULE Corrugated Paper/Box

Cutting Rules

Corrugated Paper/Box

Our Recommendation
Type SG、Type GR、Type D、Type C、Type E

Application Types

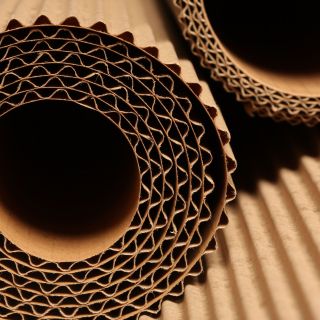

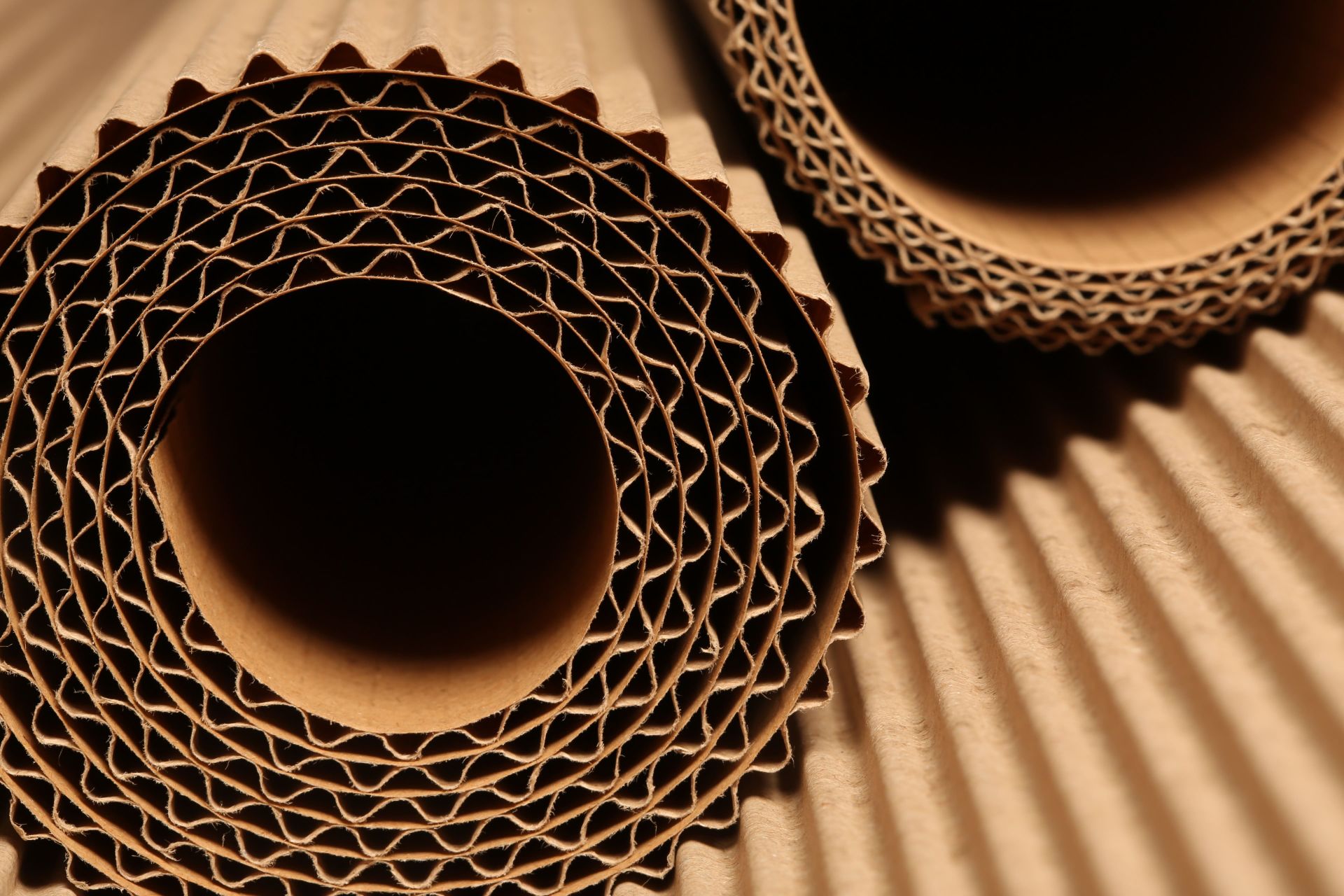

▸A-flute
・Good buffering & elastic
▸B-flue
・Structurally made by high density with good compressive strength.
・Good for printing application.
▸E-flute
・Very thin with high density, providing better compressive strength.
Share:

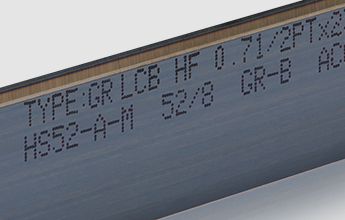

TYPE GR

Type GR - Ground Rule

・Significantly reducing cutting force.
・Reduce dusting and angel hair.
・Offer clear and precise cut.
・Suitable for hard or elasticity material.

Applications:
Plastics, Laminated paperboards, and Leathers

Super Ground Rule

TYPE SG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Ground Rule

TYPE GR
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Shaved Rule

TYPE D
Bevel type LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897") ~ 23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380 / HRC32,34,38
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Shaved Rule

TYPE C
Bevel type CB (Center bevel)
Thickness 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897") ~ 23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380 / HRC32,34,38
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Shaved Rule

TYPE E
Bevel type DR (Double Round) / SR (Single Round) / SF (Special facet)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897"),  23.10mm(.909")
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
