【F】INFINITY RULE
Cutting Rules

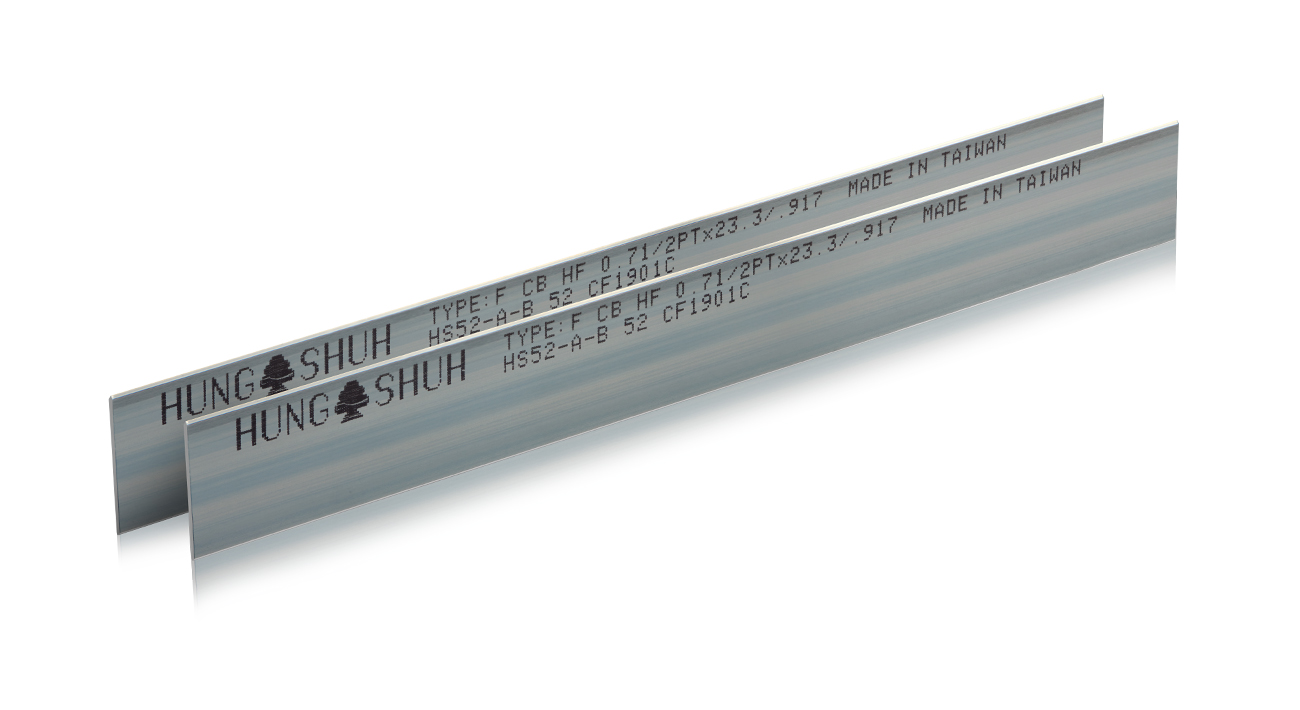

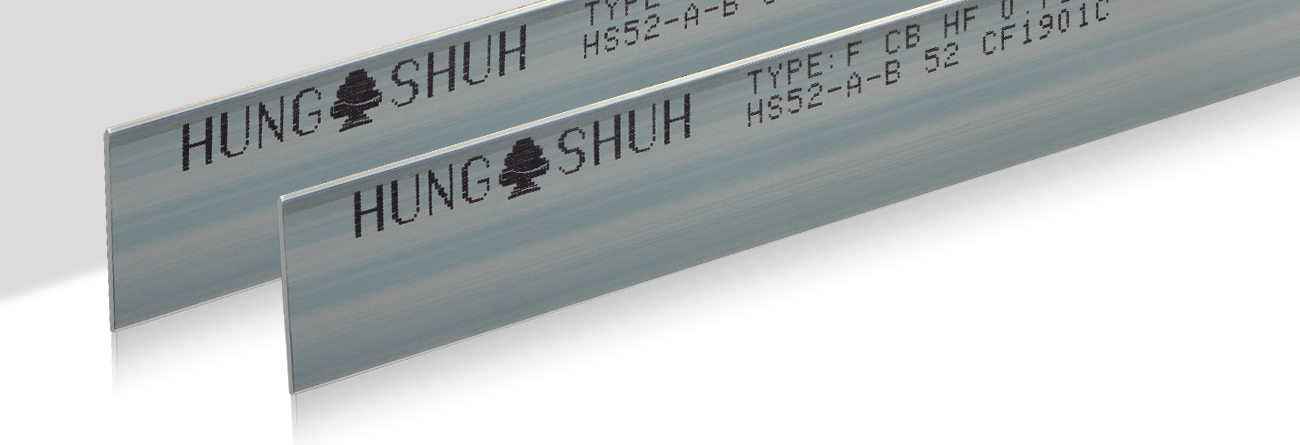

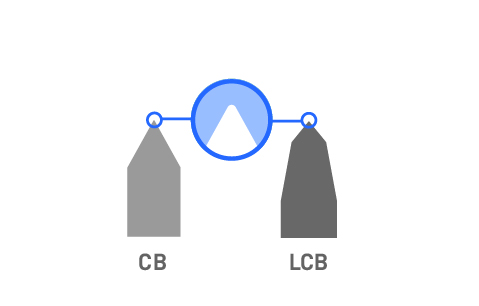

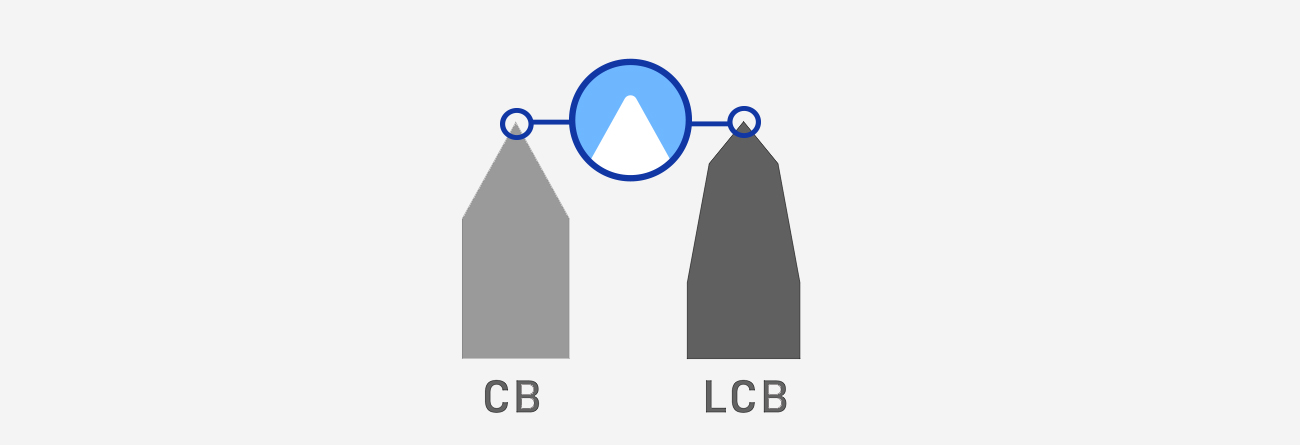

Infinity Rule (R=0.018)
・Unique round edge provides beyong 2 million cuts.
・Long-lasting performance.
・Save time and cost from replacing rule again and again.
Applications:
Medicine box, Cigarette box,Cosmetics box and corrugated box
Infinity Rule |
| TYPE | F |
|---|---|

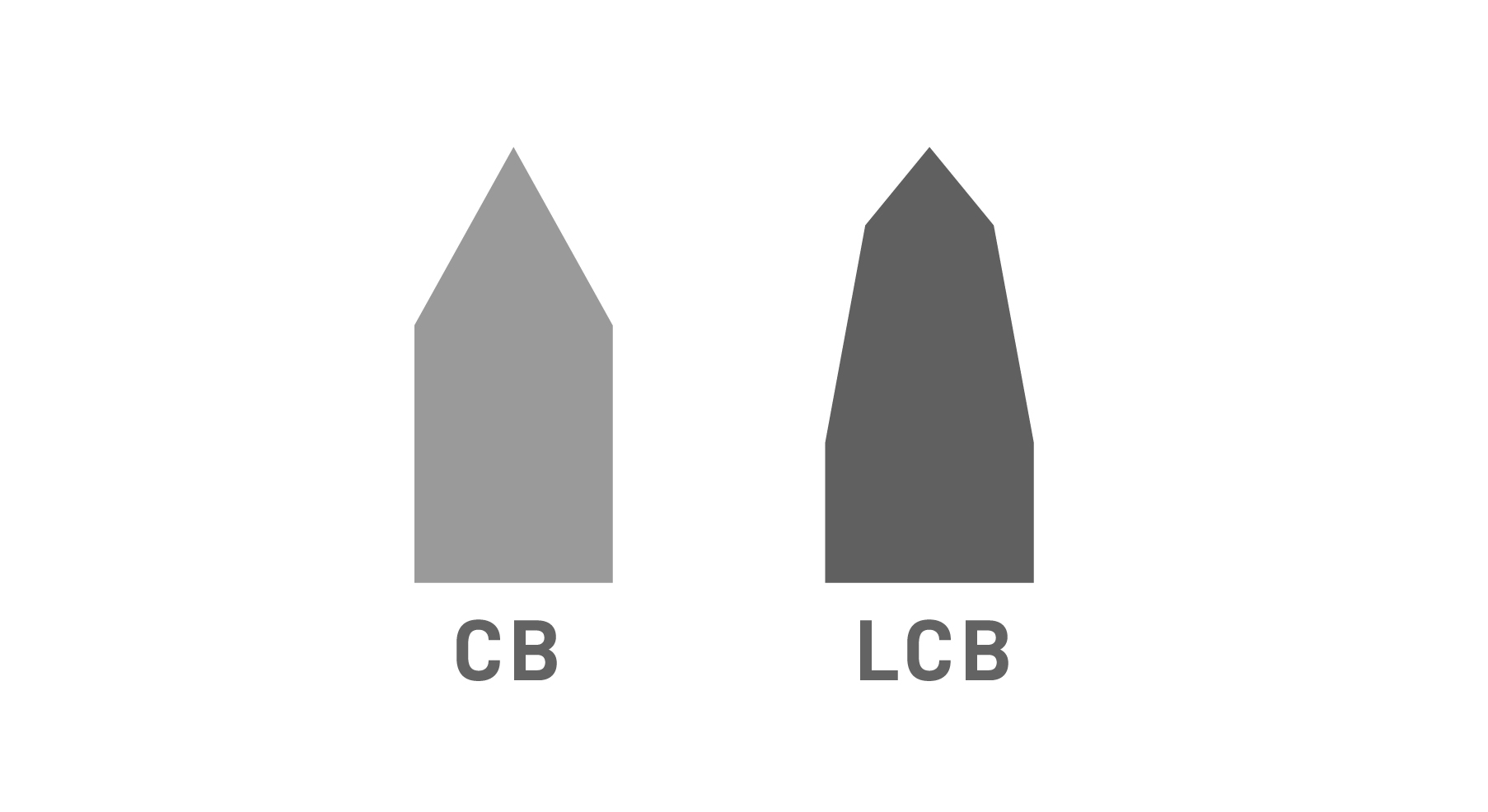

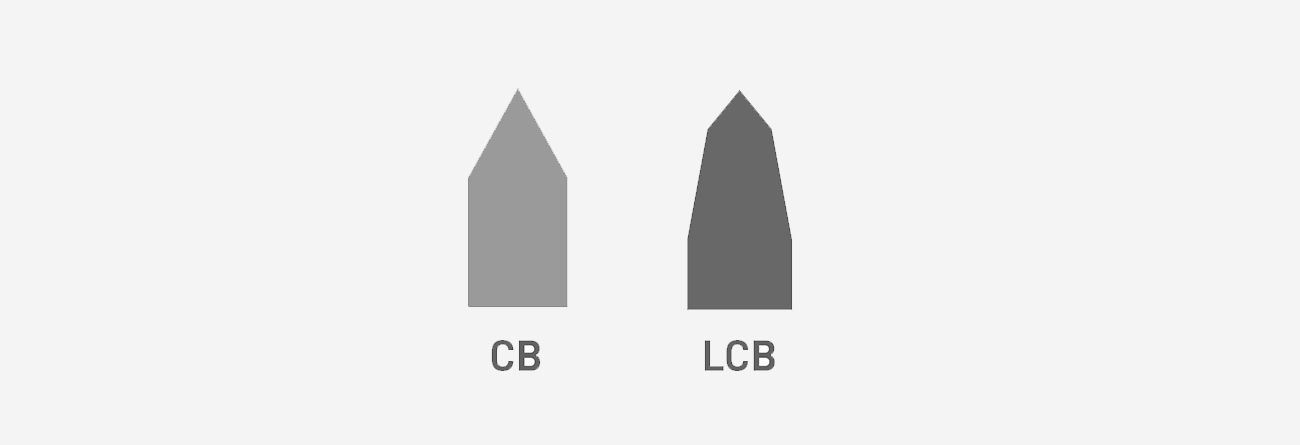

| Bevel type | CB (Center bevel) / LCB (Long center bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
► For more blade types and detailed specifications, please refer to the Hung Shuh Cutting Rules Catalog
► Further Reading : How to Fix Crease Line Cracking in Die-Cut Paper Packaging ?
► Further Reading : What is Hung Shuh's shipping standard?
► Further Reading : How to Fix Crease Line Cracking in Die-Cut Paper Packaging ?
► Further Reading : What is Hung Shuh's shipping standard?
Paper tableware container
Type F
Cigarette box, Pillbox
Type F
