Cutting Rules

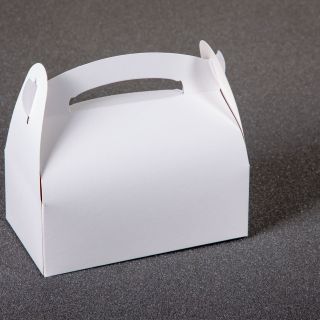

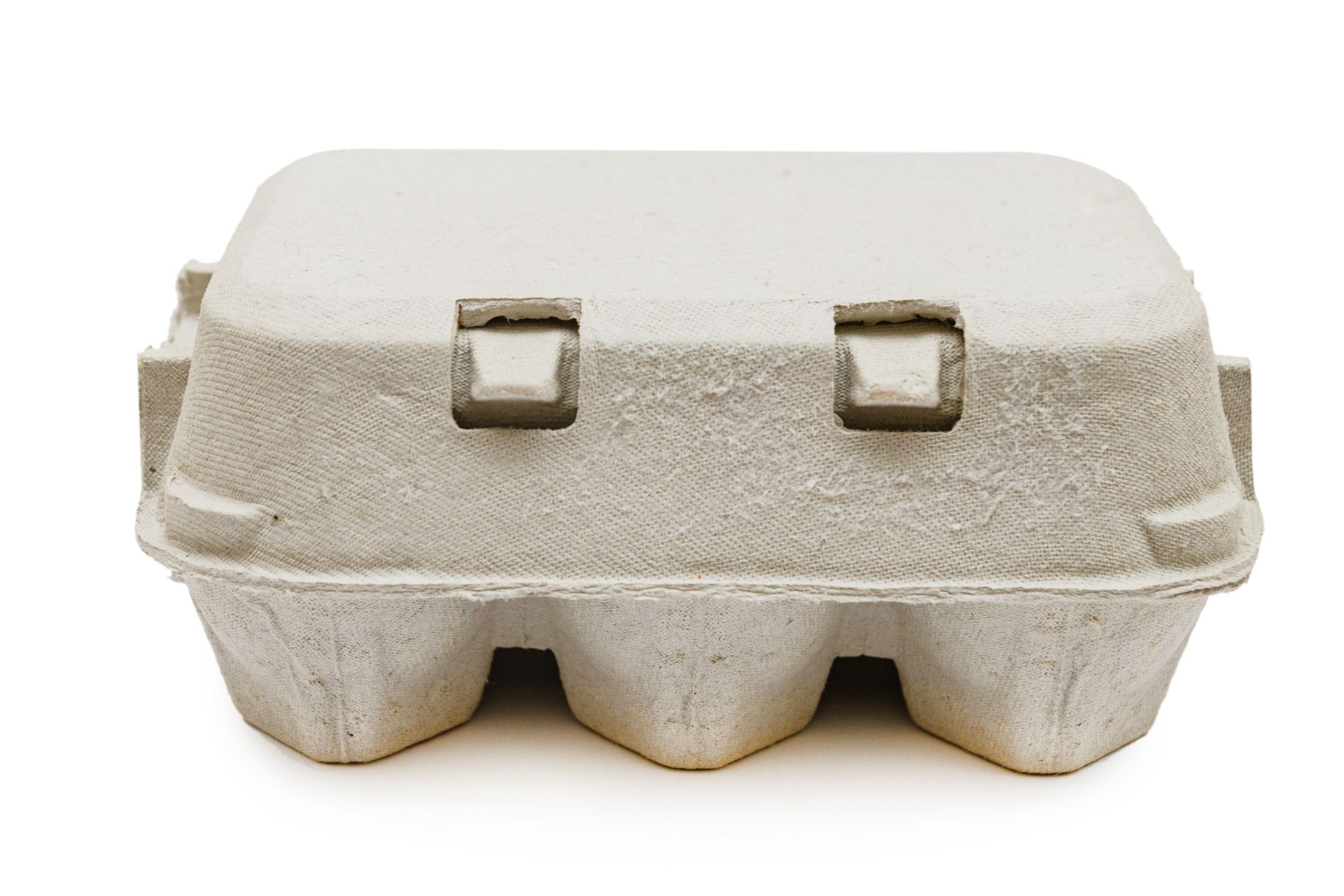

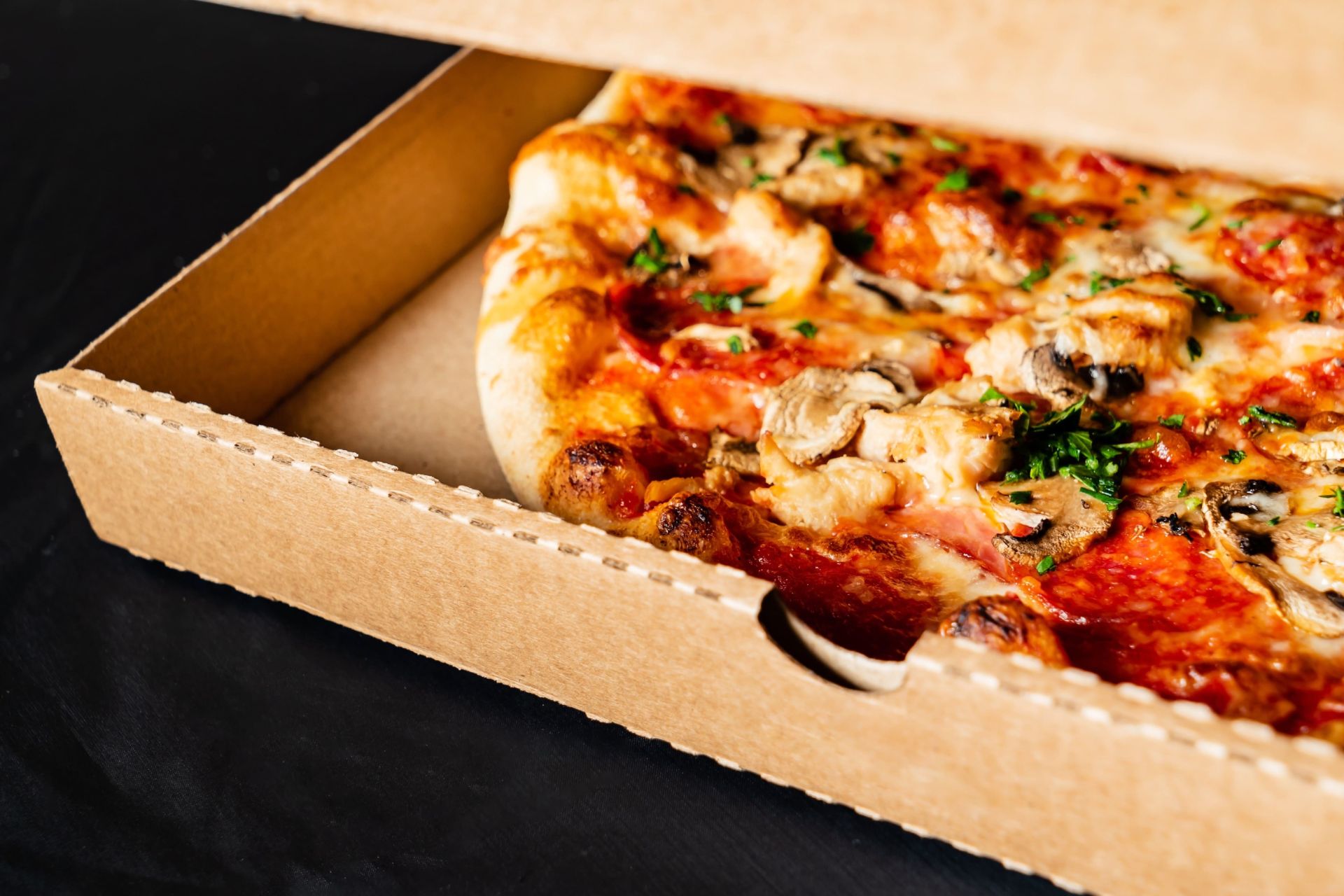

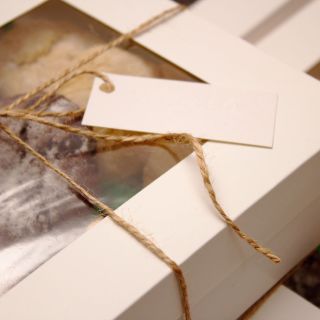

Paper tableware container
Our Recommendation
Type SG、Type GR、Type F、Type E
Characteristics
・Laminated by PP or PE
・99% paper+1% plastic lamination
・Acid-alkali resistance & oil resistance
Type SG、Type GR、Type F、Type E
Characteristics
・Laminated by PP or PE
・99% paper+1% plastic lamination
・Acid-alkali resistance & oil resistance
Type F - Infinity Cut (RO)
・Unique round edge provides beyong 2 million cuts.
・Long-lasting performance.
・Save time and cost from replacing rule again and again.
Applications:
Medicine box, Cigarette box, Cosmetics box
・Long-lasting performance.
・Save time and cost from replacing rule again and again.
Applications:
Medicine box, Cigarette box, Cosmetics box
Super Ground Rule |
| TYPE | SG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Ground Rule |
| TYPE | GR |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400 / HRC32,34,38,40 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Infinity Cut |
| TYPE | F |
|---|---|
| Bevel type | CB (Center bevel) / LCB (Long center bevel) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
Creasing Rule |
| TYPE | E |
|---|---|
| Bevel type | DR (Double Round) / SR (Single Round) / SF (Special facet) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 22.80mm (.897"), 23.10mm(.909") |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
RECOMMENDATION
Cigarette box, Pillbox
Type F
