【E】CREASING RULE
Cutting Rules

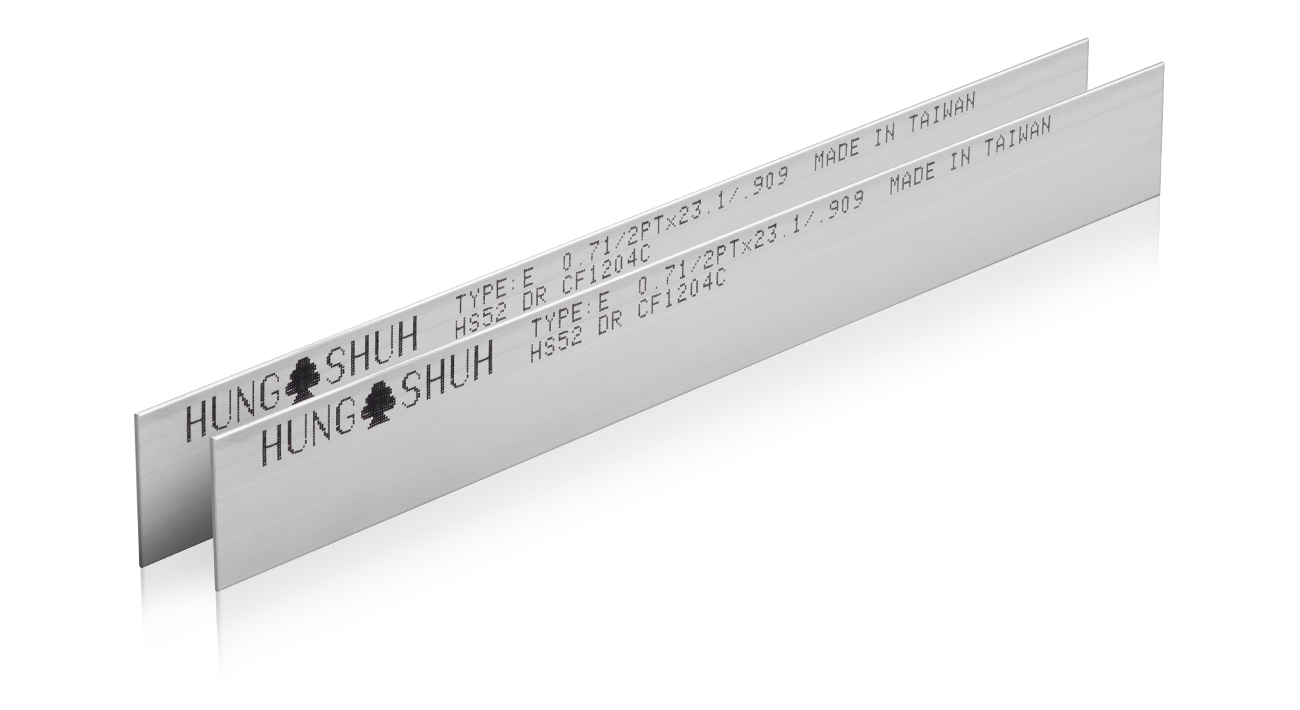

Creasing Rule
・Excellent radius profile.
・Very smooth creasing head.
・Minimum height tolerance.
Applications:

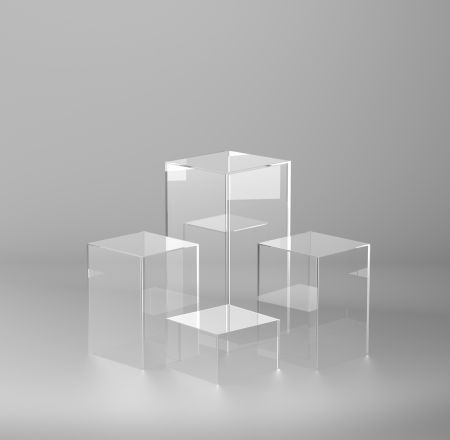

Packaging Containers, Plastic Boxes and Blisters.
Creasing Rule |
| TYPE | E |
|---|---|

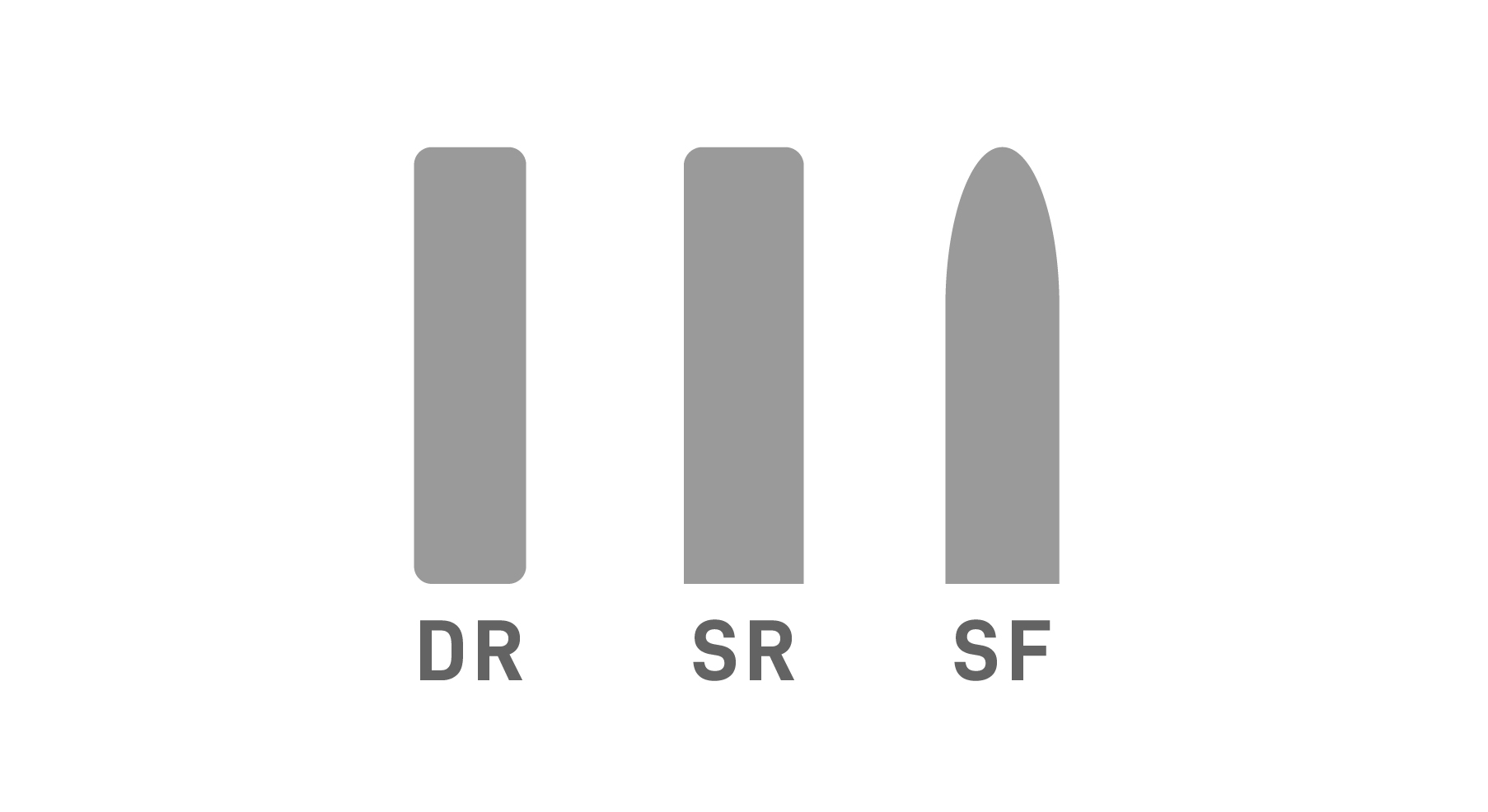

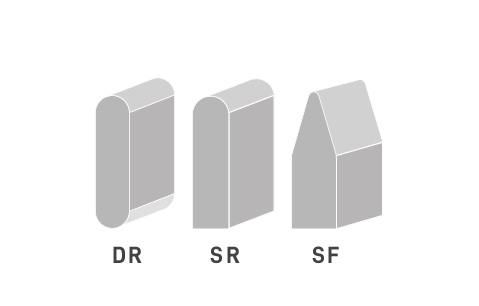

| Bevel type | DR (Double Round) / SR (Single Round) / SF (Special facet) |
| Thickness | 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt) |
| Height | 22.80mm (.897"), 23.10mm(.909") |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
► For more blade types and detailed specifications, please refer to the Hung Shuh Cutting Rules Catalog
► Related Reading : Enhancing Fold Lines | The Essential Role of Creasing Rules
► Related Reading : Enhancing Fold Lines | The Essential Role of Creasing Rules

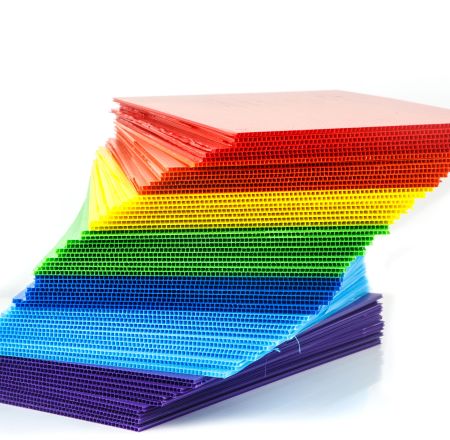

Plastic cardboard
Type E

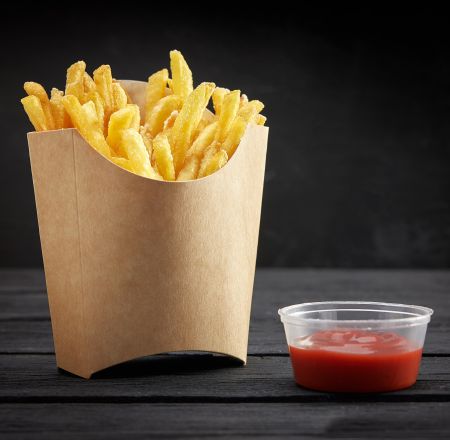

Paper tableware container
Type E

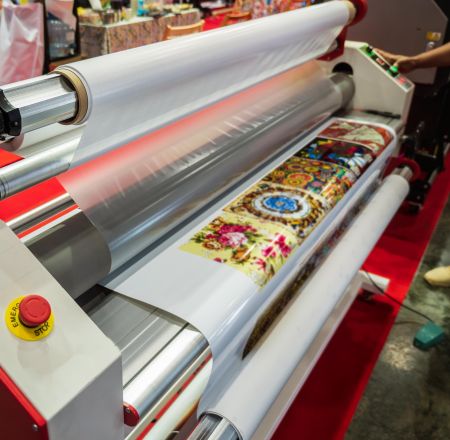

Laminated paper
Type E

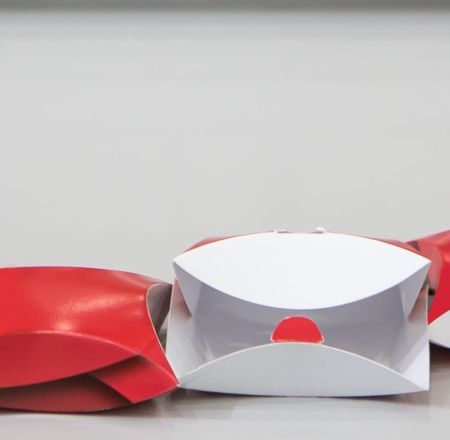

Cigarette box, Pillbox
Type E
Color box
Type E

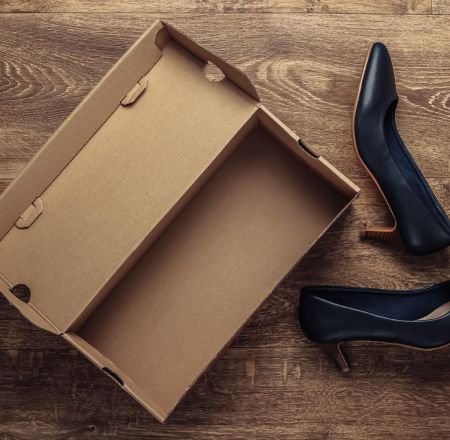

Corrugated Paper/Box
Type E
