Cutting Rules

Non-Woven Fabric, Felt

Our Recommendation
Type SG、Type GR、Type S、Type HSG、 Type H

Applications

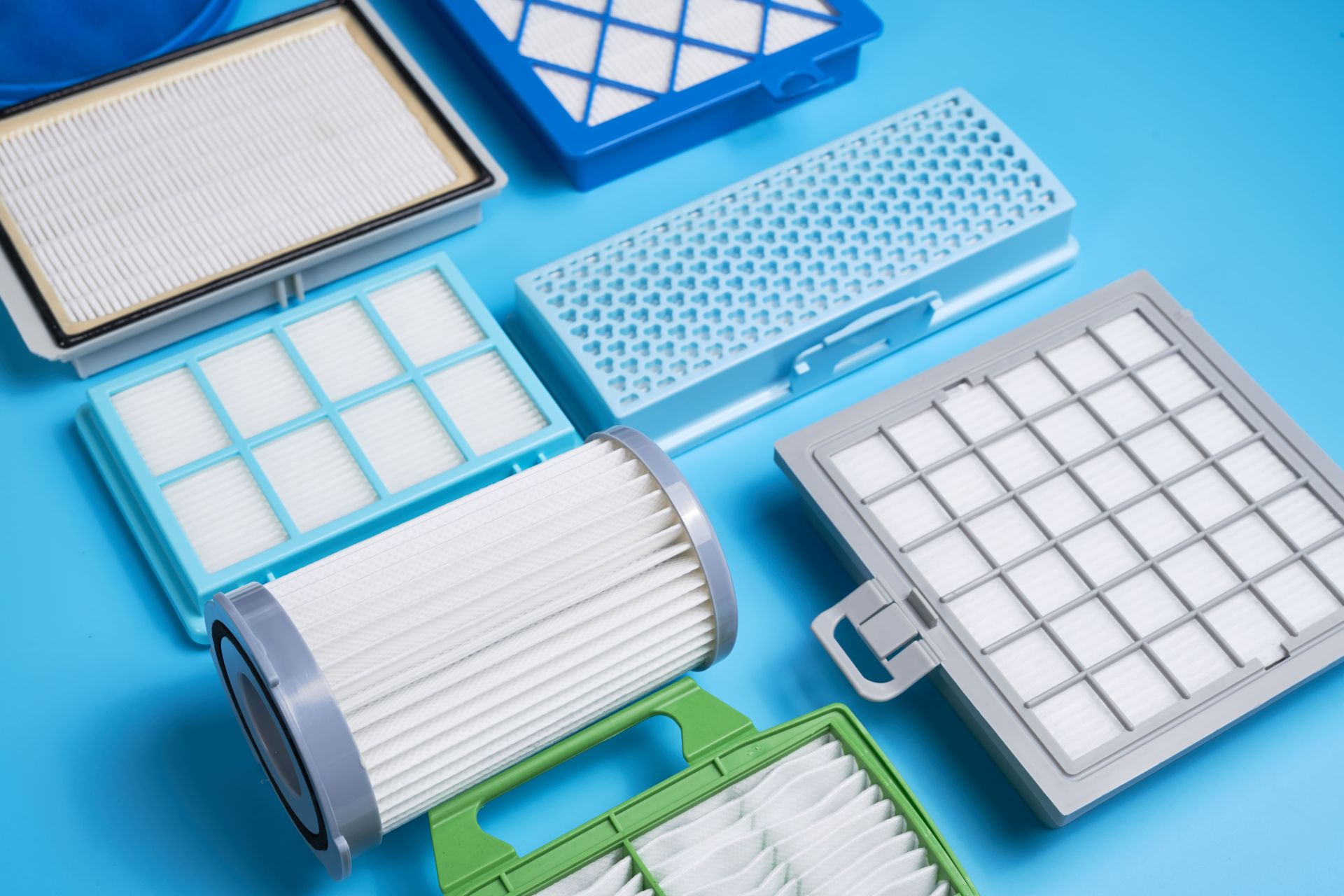

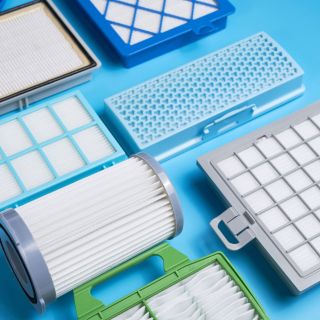

・Filter
・Medical Non-woven-fabric

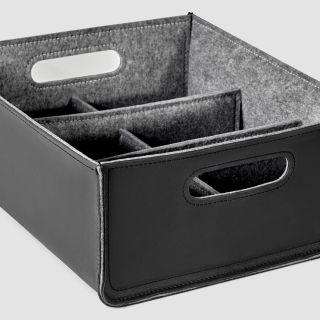

・Autoparts

Characteristics
・3D grid structure with high porosity
・With needle-punch's high ductility & wear resistance

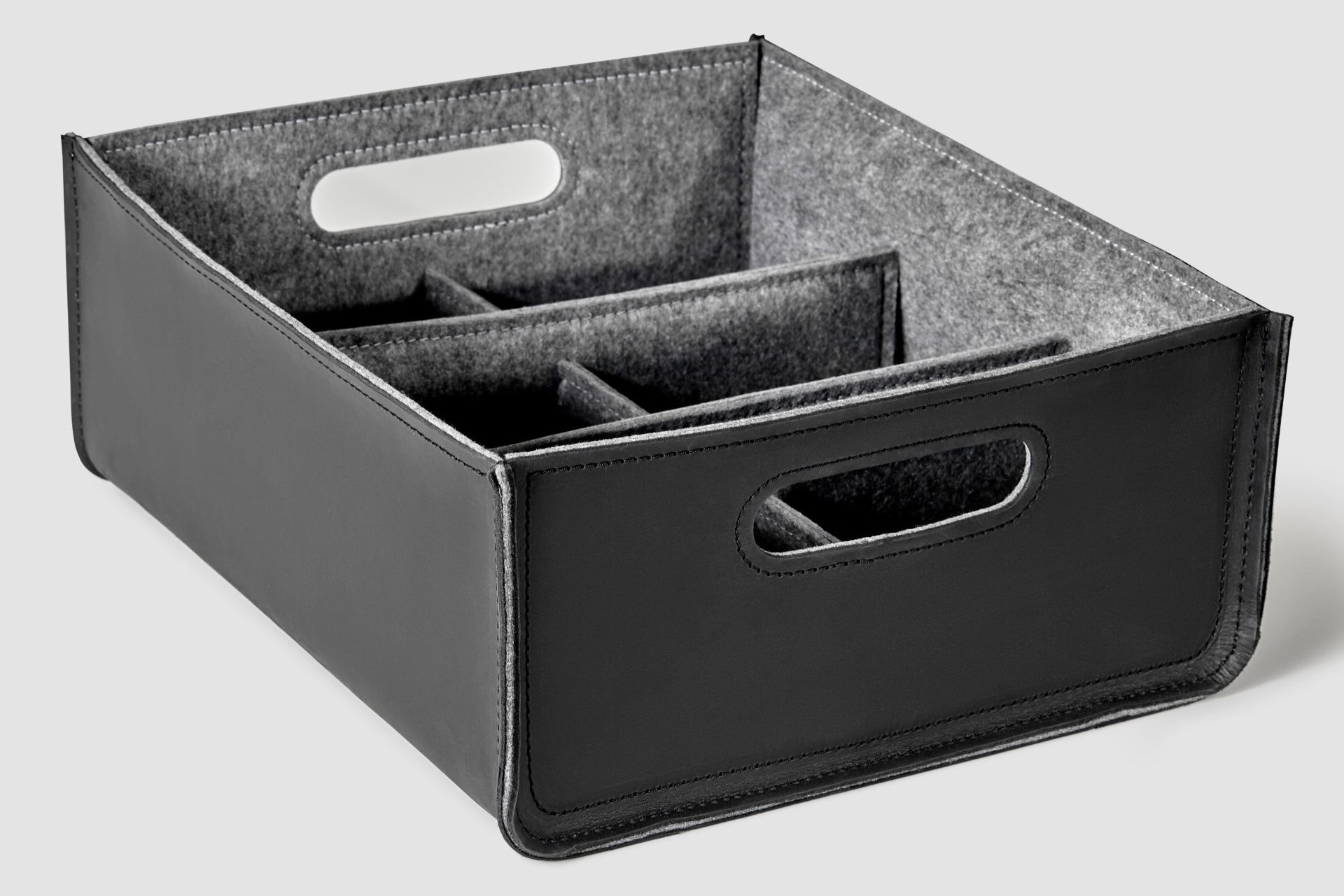

・Felt: Thick material and High elasticity
Share:
TYPE H, 301.06



・Can cut a diverse range of materials, particularly those that are thicker in nature.
・Reduce cutting friction

Applications:
EVA, Sponges, and Cushion Packagings

Super Ground Rule

TYPE SG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Ground Rule

TYPE GR
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Side Bevel Rule

TYPE S
Bevel type SB (Side bevel) , LSB (Long Side bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、51°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60

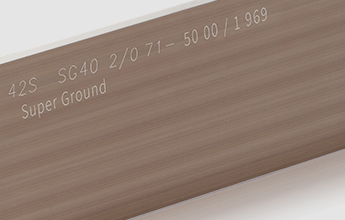

High Rule with Superfine Ground Bevel

TYPE HSG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)
Height 30mm (1.181"),  32mm (1.26"),  35mm (1.377"),  40mm (1.574"),  50mm(1.968")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Hight Rule

TYPE H
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 30mm (1.181"),  32mm (1.26"),  35mm (1.377"),  40mm (1.574"),  50mm(1.968")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60
