HOME 【SG】SUPER GROUND RULE Paper tableware container

Cutting Rules

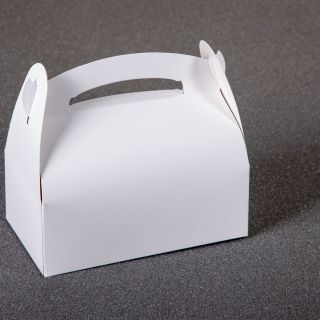

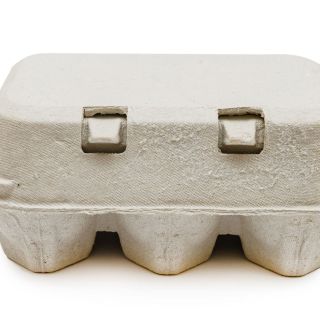

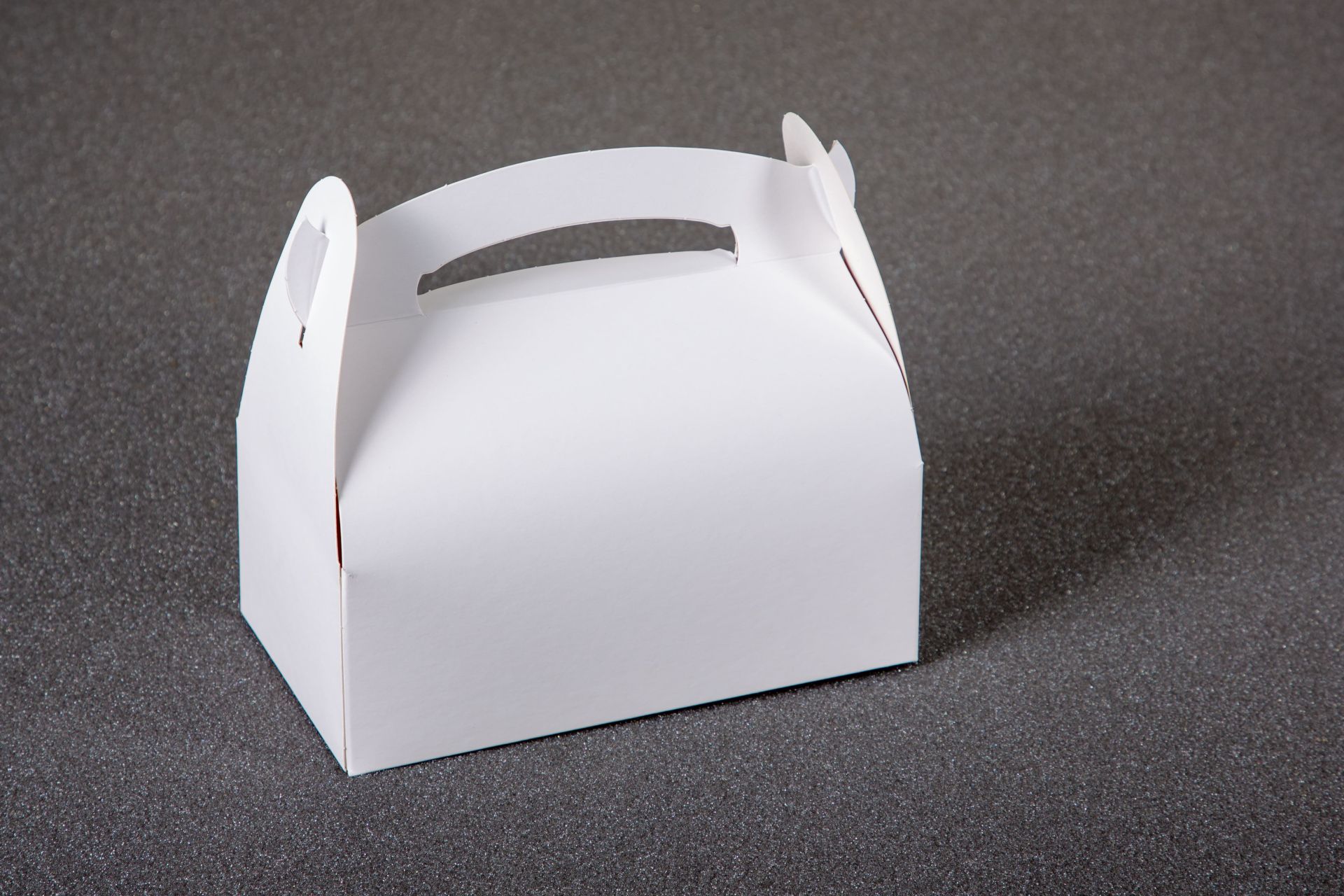

Paper tableware container

Our Recommendation
Type SG、Type GR、Type F、Type E

Characteristics
・Laminated by PP or PE
・99% paper+1% plastic lamination
・Acid-alkali resistance & oil resistance
Share:

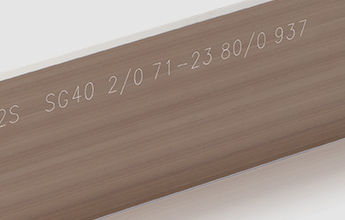

TYPE SG

Type SG - Super Ground Rule

・Designed for delicated and difficult materials.
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.

Applications:
PE, PET, PVC, PP, other Plastics, Various blisters, Coated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin wooden boards, Electronic soft boards, Carbon fiber cloth

Super Ground Rule

TYPE SG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Ground Rule

TYPE GR
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Infinity Cut

TYPE F
Bevel type CB (Center bevel)  /  LCB (Long center bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Creasing Rule

TYPE E
Bevel type DR (Double Round) / SR (Single Round) / SF (Special facet)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897"),  23.10mm(.909")
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
