Cutting Rules

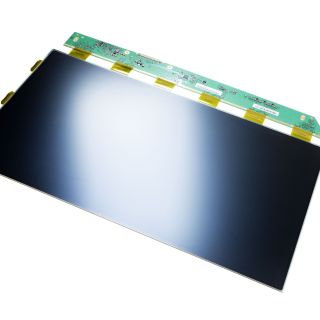

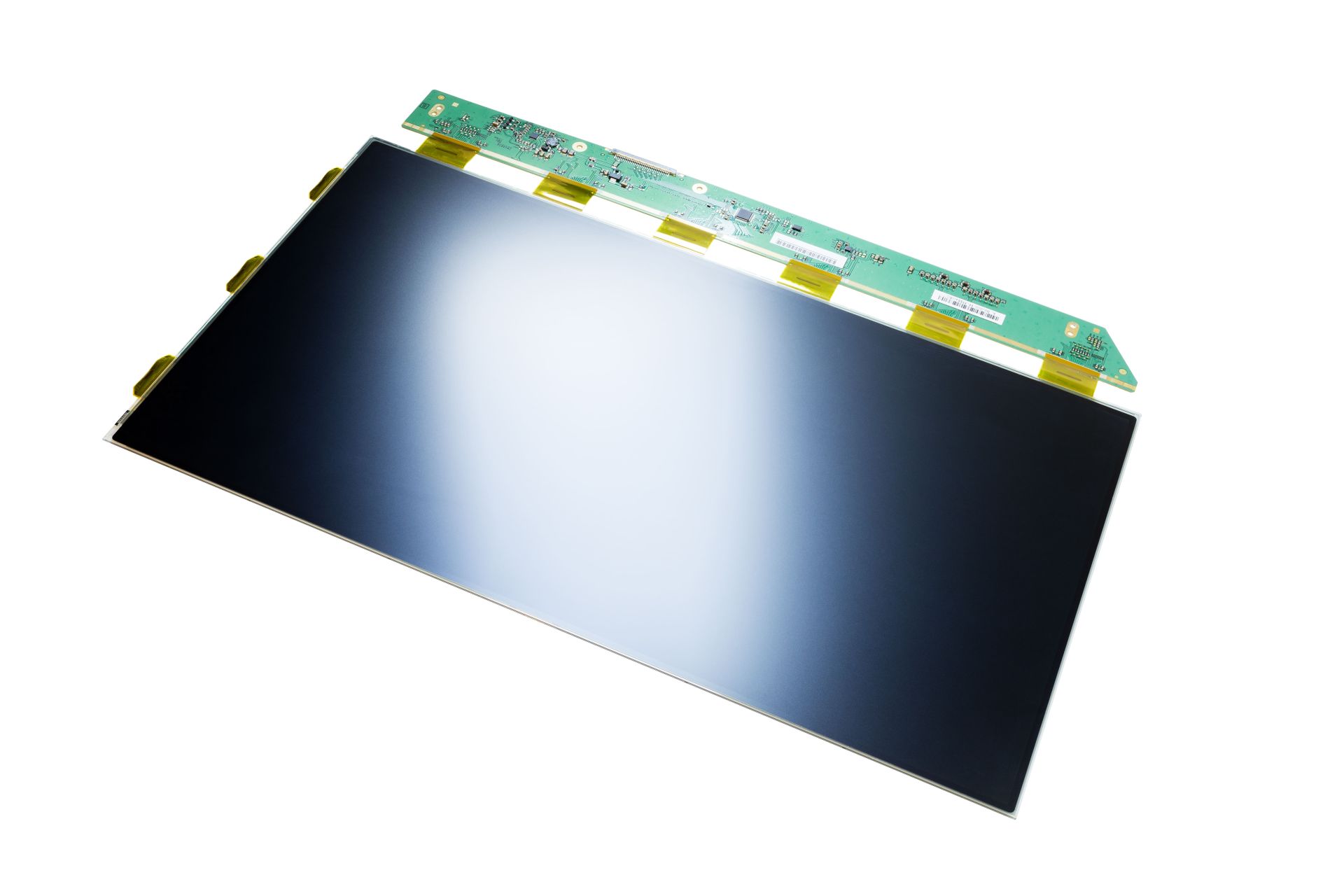

LCD panel
【Our Recommendation】
▸Type SG
【Characteristics】
・Composed by Glass-base-board & Polarizer & Backlight module
・Polarizer is produced with 100% TCA (Tri-cellulose Acetate)
▸Type SG
【Characteristics】
・Composed by Glass-base-board & Polarizer & Backlight module
・Polarizer is produced with 100% TCA (Tri-cellulose Acetate)

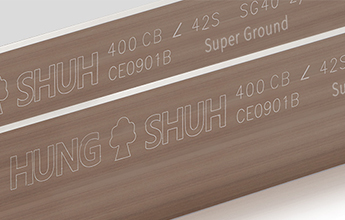

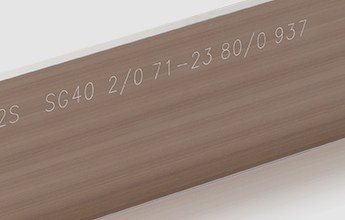

Type SG - Super Ground Rule
・Designed for delicated and difficult materials.
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.
Applications:
PE, PET, PVC, PP, other Plastics, Various blisters, Coated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin wooden boards, Electronic soft boards, Carbon fiber cloth
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.
Applications:
PE, PET, PVC, PP, other Plastics, Various blisters, Coated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin wooden boards, Electronic soft boards, Carbon fiber cloth
Super Ground Rule |
| TYPE | SG |
|---|---|
| Bevel type | CB (Center bevel) , LCB (Long center bevel) |
| Thickness | 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt) |
| Height | 23.60mm (.929"), 23.80mm (.937") |
| Angle | ∠42°、52° |
| Body hardness | HV320,340,380,400,450 / HRC32,34,38,40,45 |
| Edge hardness | HV600,640,670,700 / HRC55,58,59,60 |
