HOME 【SG】SUPER GROUND RULE Medical box, Luxury Cosmetic box

Cutting Rules

Medical box, Luxury Cosmetic box

Our Recommendation
Type SG、Type F、Type S、Type E

Characteristics
Packaging for pharmaceutical products manufactured in clean rooms must be free of burrs and have clean cut edges.
Share:

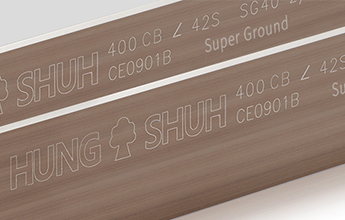

TYPE SG

Type SG - Super Ground Rule

・Designed for delicated and difficult materials.
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.

Applications:
PE, PET, PVC, PP, other Plastics, Various blisters, Coated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin wooden boards, Electronic soft boards, Carbon fiber cloth

Super Ground Rule

TYPE SG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Infinity Cut

TYPE F
Bevel type CB (Center bevel)  /  LCB (Long center bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Side Bevel Rule

TYPE S
Bevel type SB (Side bevel) , LSB (Long Side bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、51°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Creasing Rule

TYPE E
Bevel type DR (Double Round) / SR (Single Round) / SF (Special facet)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897"),  23.10mm(.909")
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
