HOME 【SG】SUPER GROUND RULE Seal, Gasket, Packing

Cutting Rules

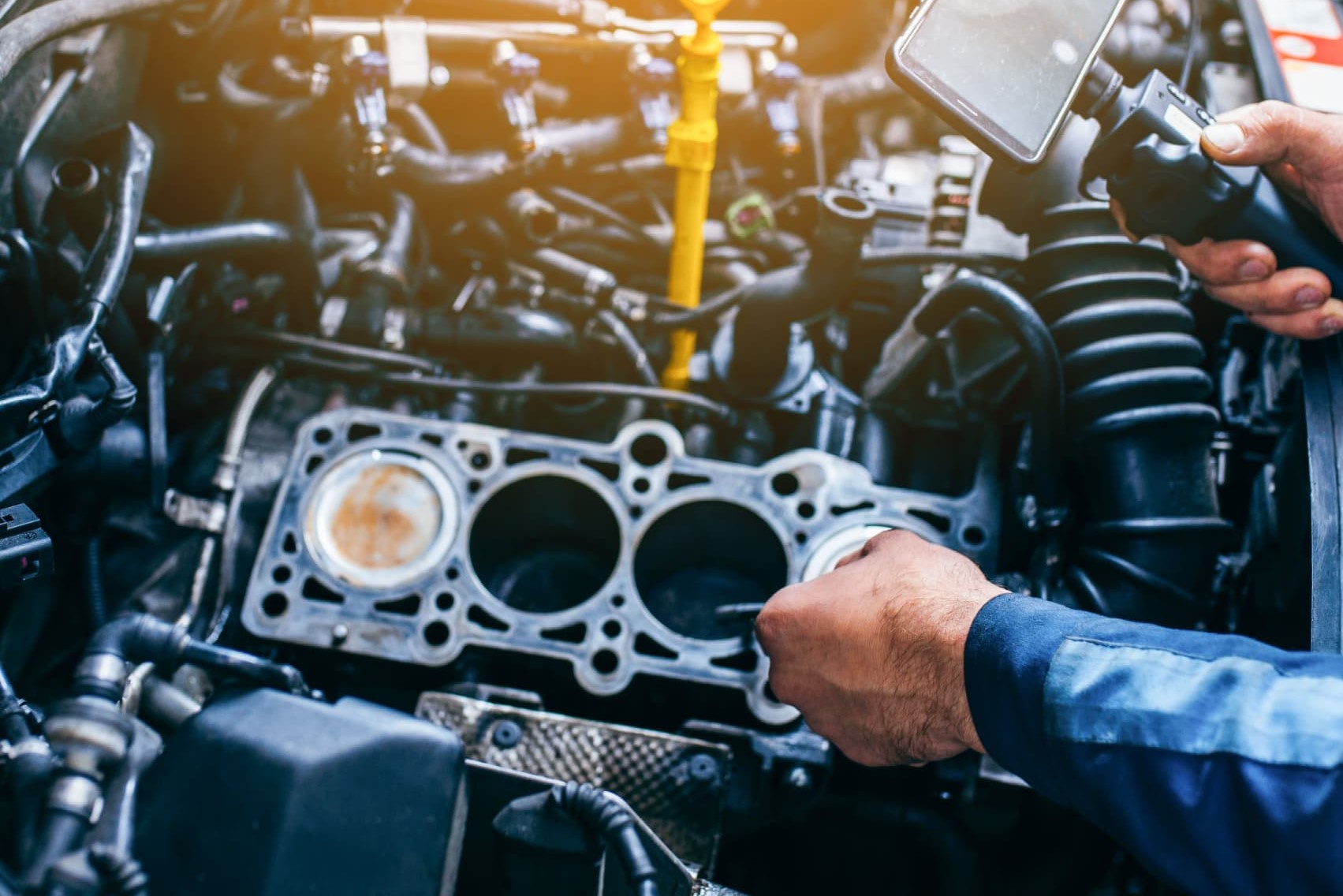

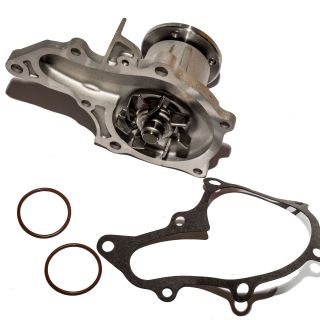

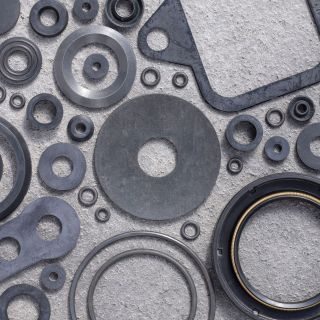

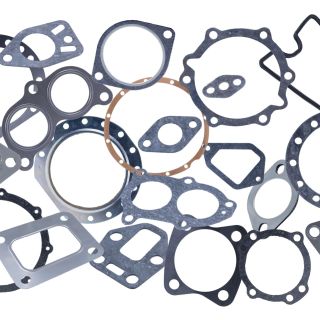

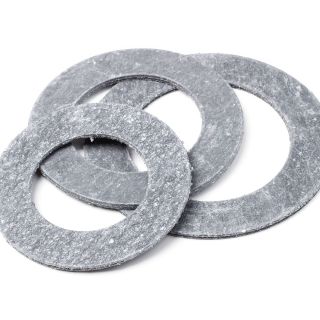

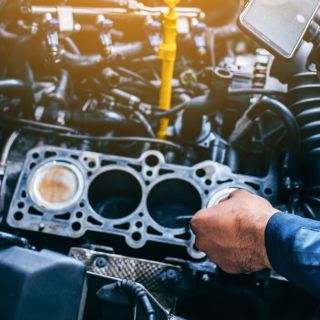

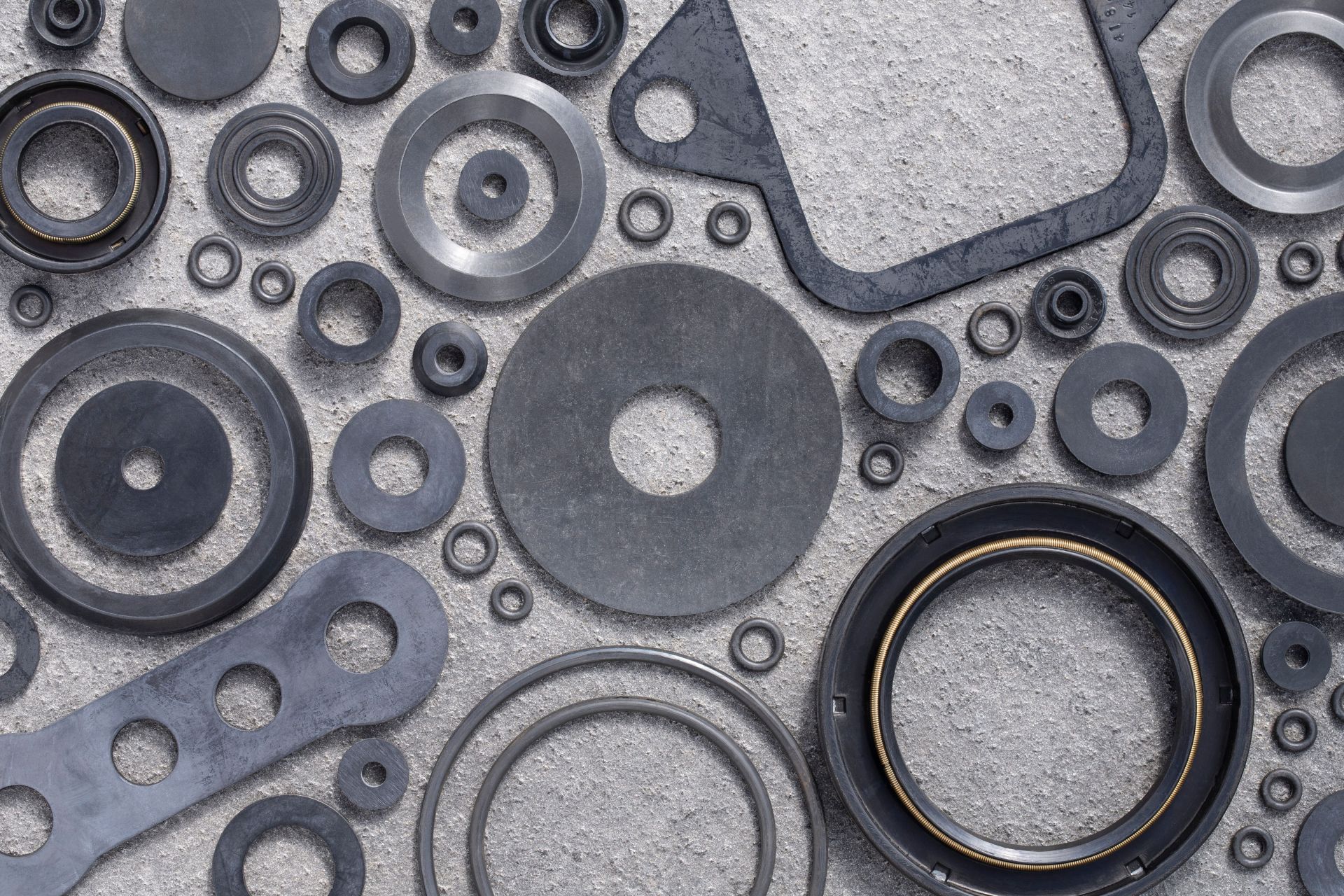

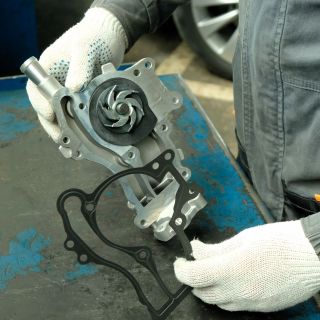

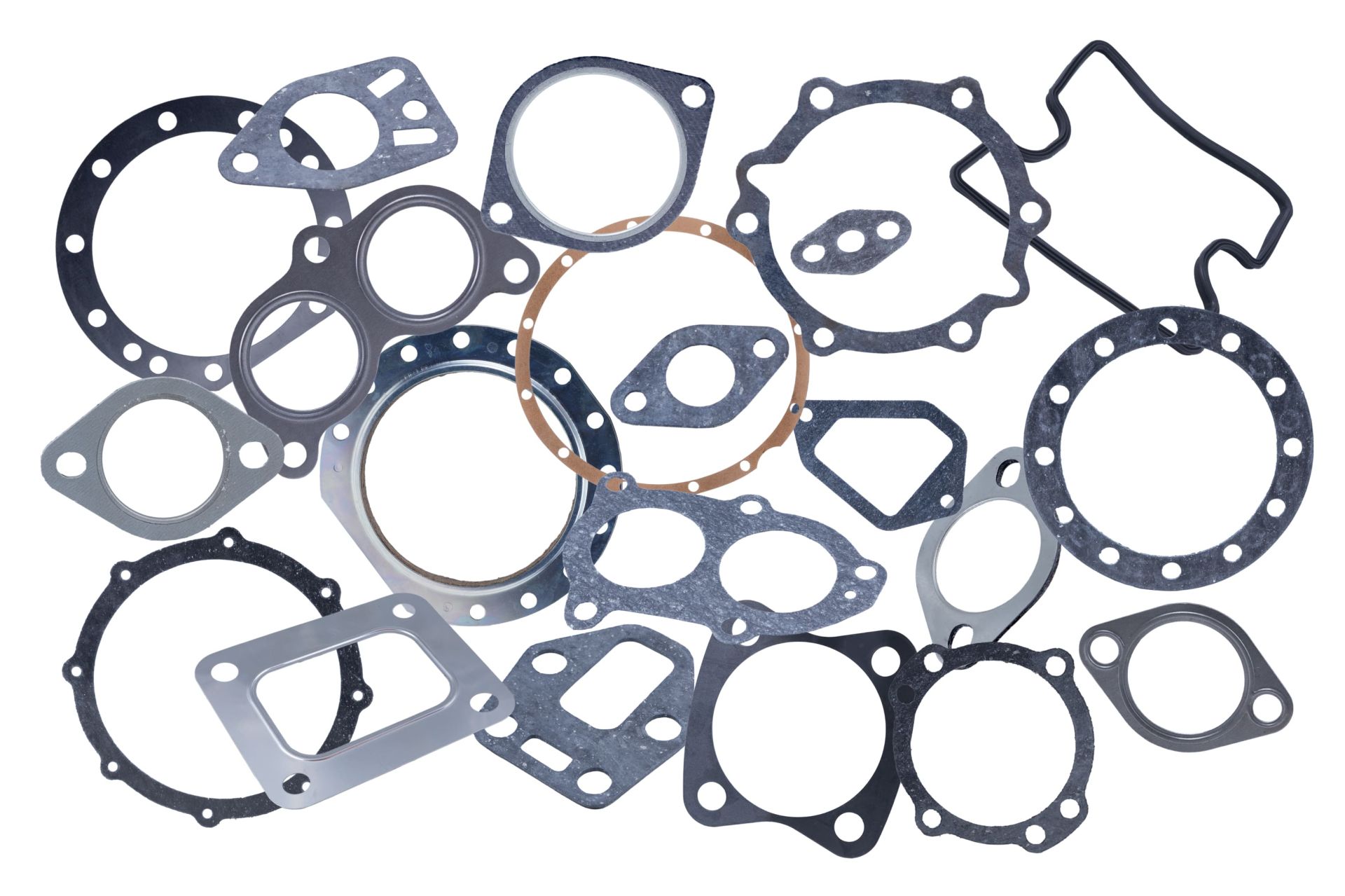

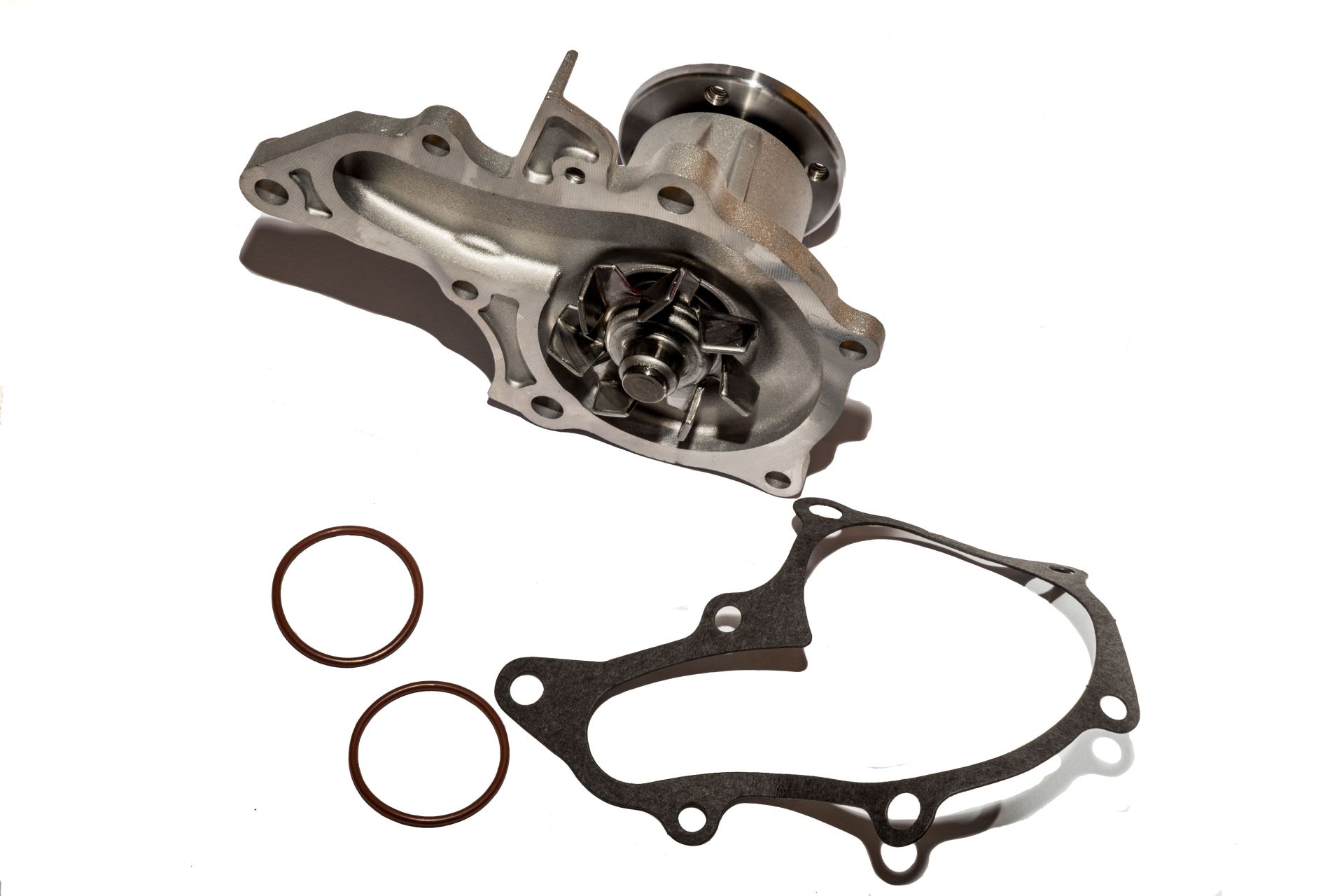

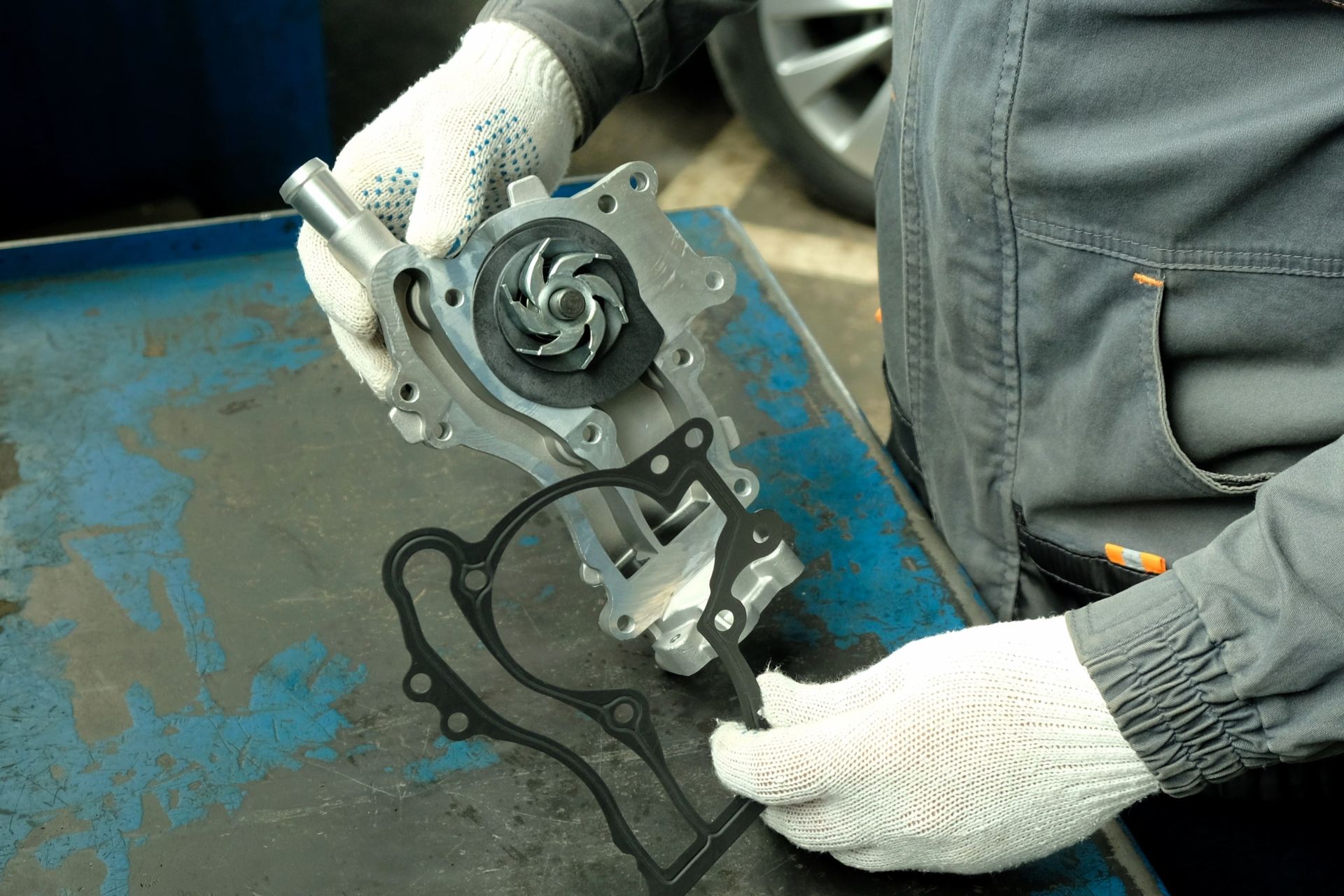

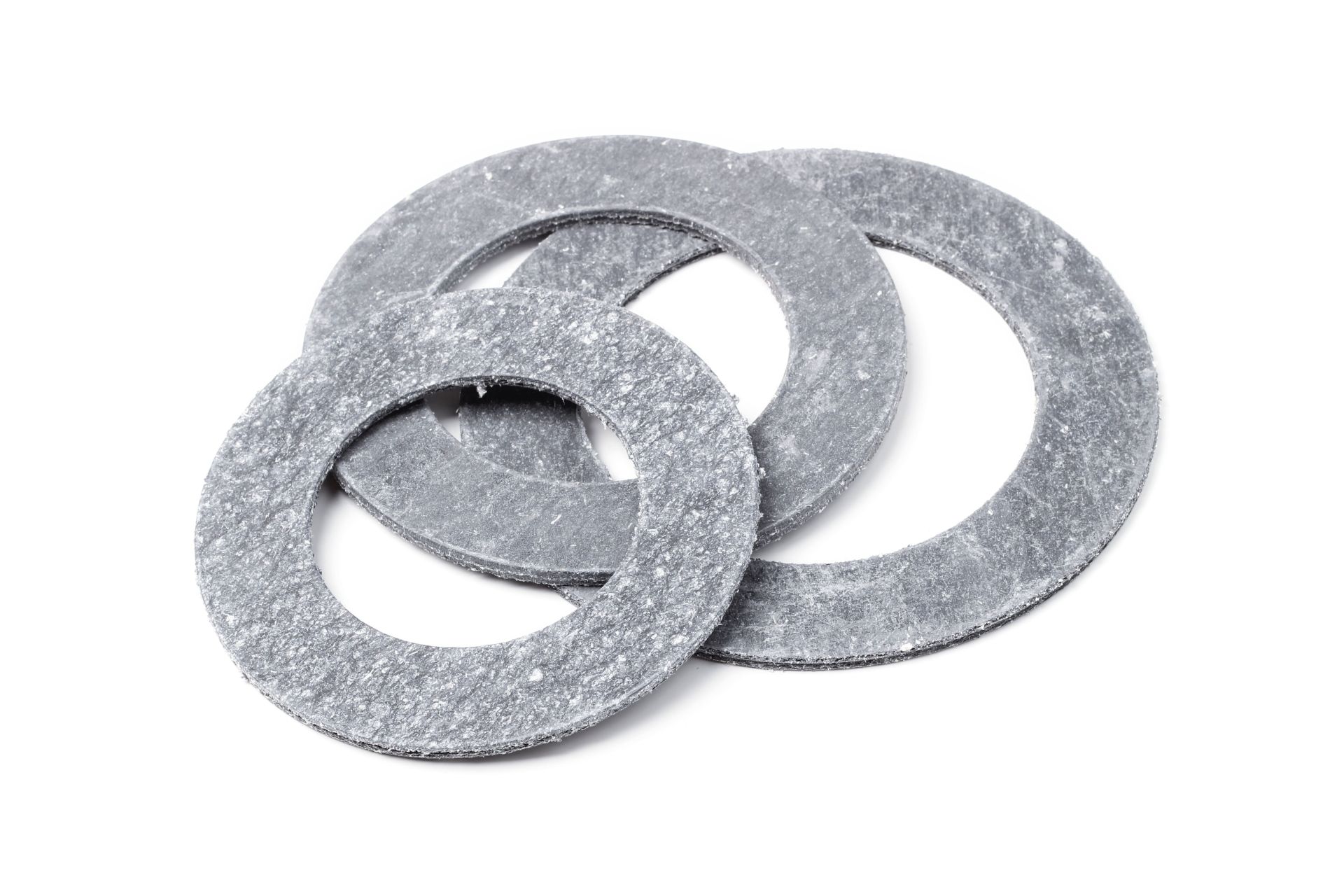

Seal, Gasket, Packing

Our Recommendation Knife
Type SG, Type GR, Type S

Material
・Rubber
・CR Rubber
・NBR
・Silicone rubber
・Ethylene Propylene Diene Monomer(EPDM)

Remark
・Metal or thick material can be cut by hydraulic machine
・Thin material can be cut by flat-diecutting machine to reduce the cost
Share:

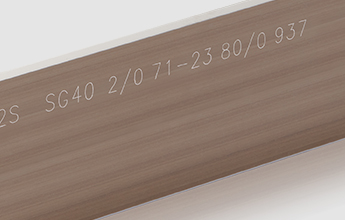

TYPE SG

Type SG - Super Ground Rule

・Designed for delicated and difficult materials.
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.

Applications:
PE, PET, PVC, PP, other Plastics, Various blisters, Coated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin wooden boards, Electronic soft boards, Carbon fiber cloth

Super Ground Rule

TYPE SG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Ground Rule

TYPE GR
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Side Bevel Rule

TYPE S
Bevel type SB (Side bevel) , LSB (Long Side bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、51°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60
