Corrugated Paper/Box

Our Recommendation
Type SG、Type GR、Type D、Type C、Type E

Application Types

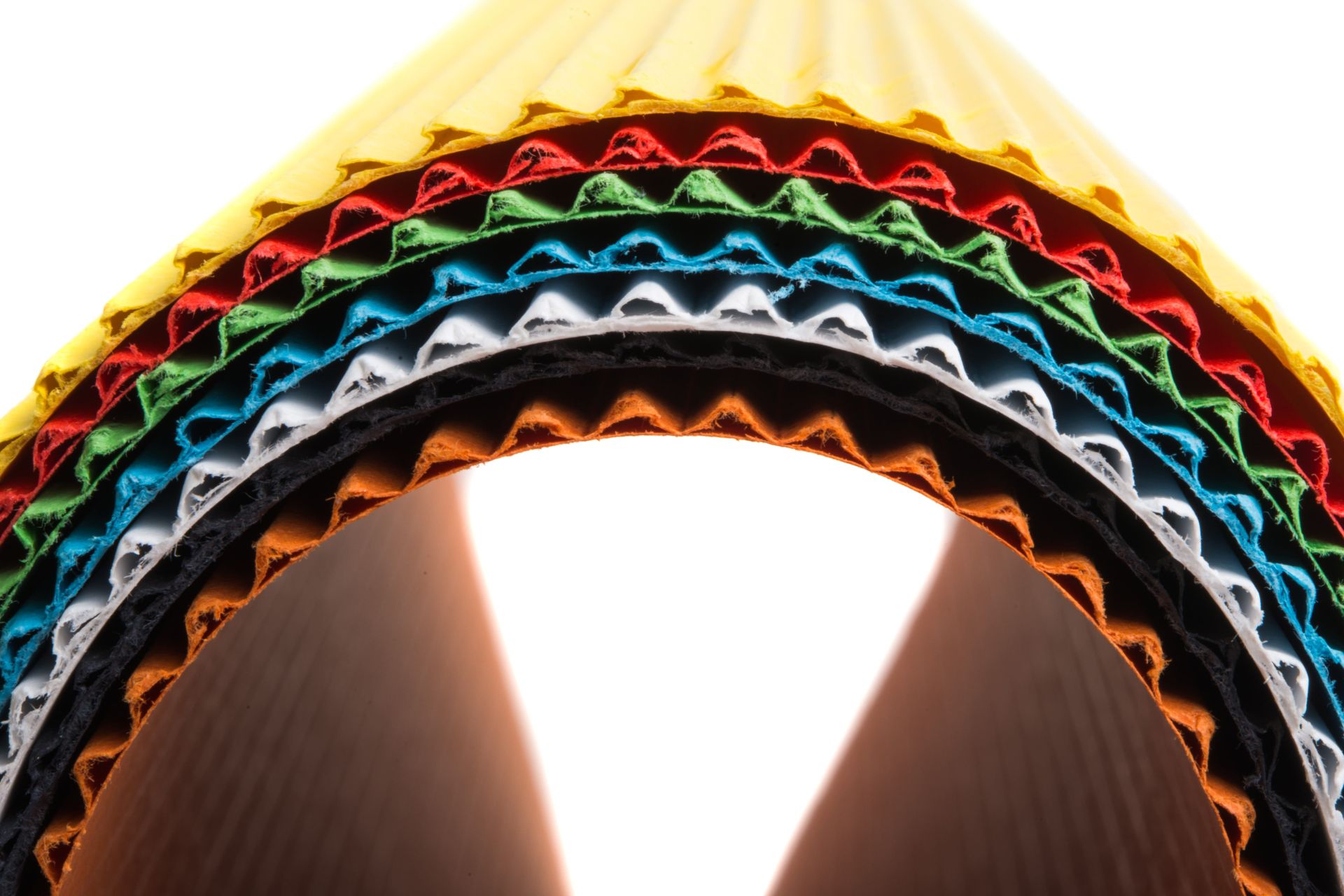

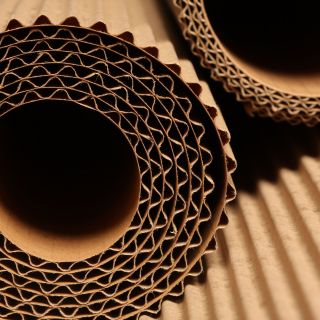

▸A-flute
・Good buffering & elastic
▸B-flue
・Structurally made by high density with good compressive strength.
・Good for printing application.
▸E-flute
・Very thin with high density, providing better compressive strength.
Share:

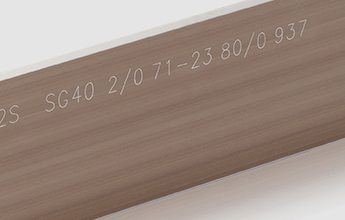

TYPE SG

Type SG - Super Ground Rule

・Designed for delicated and difficult materials.
・Extremely sharp and extra-hard cutting edge, applying for all materials.
・Significantly reducing friction and cutting force.

Applications:
PE, PET, PVC, PP, other Plastics, Various blisters, Coated paper, Composite materials, Films, Synthetic rubbers, Leathers, Thin wooden boards, Electronic soft boards, Carbon fiber cloth

Super Ground Rule

TYPE SG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Ground Rule

TYPE GR
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400 / HRC32,34,38,40
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Shaved Rule

TYPE D
Bevel type LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897") ~ 23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380 / HRC32,34,38
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Shaved Rule

TYPE C
Bevel type CB (Center bevel)
Thickness 0.45mm (1.27pt)、0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897") ~ 23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380 / HRC32,34,38
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Shaved Rule

TYPE E
Bevel type DR (Double Round) / SR (Single Round) / SF (Special facet)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 22.80mm (.897"),  23.10mm(.909")
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
