HOME 【S】SIDE BEVEL RULE Capsule Blister Packaging / Aluminum-Foil

Cutting Rules

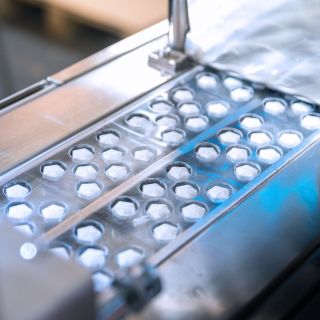

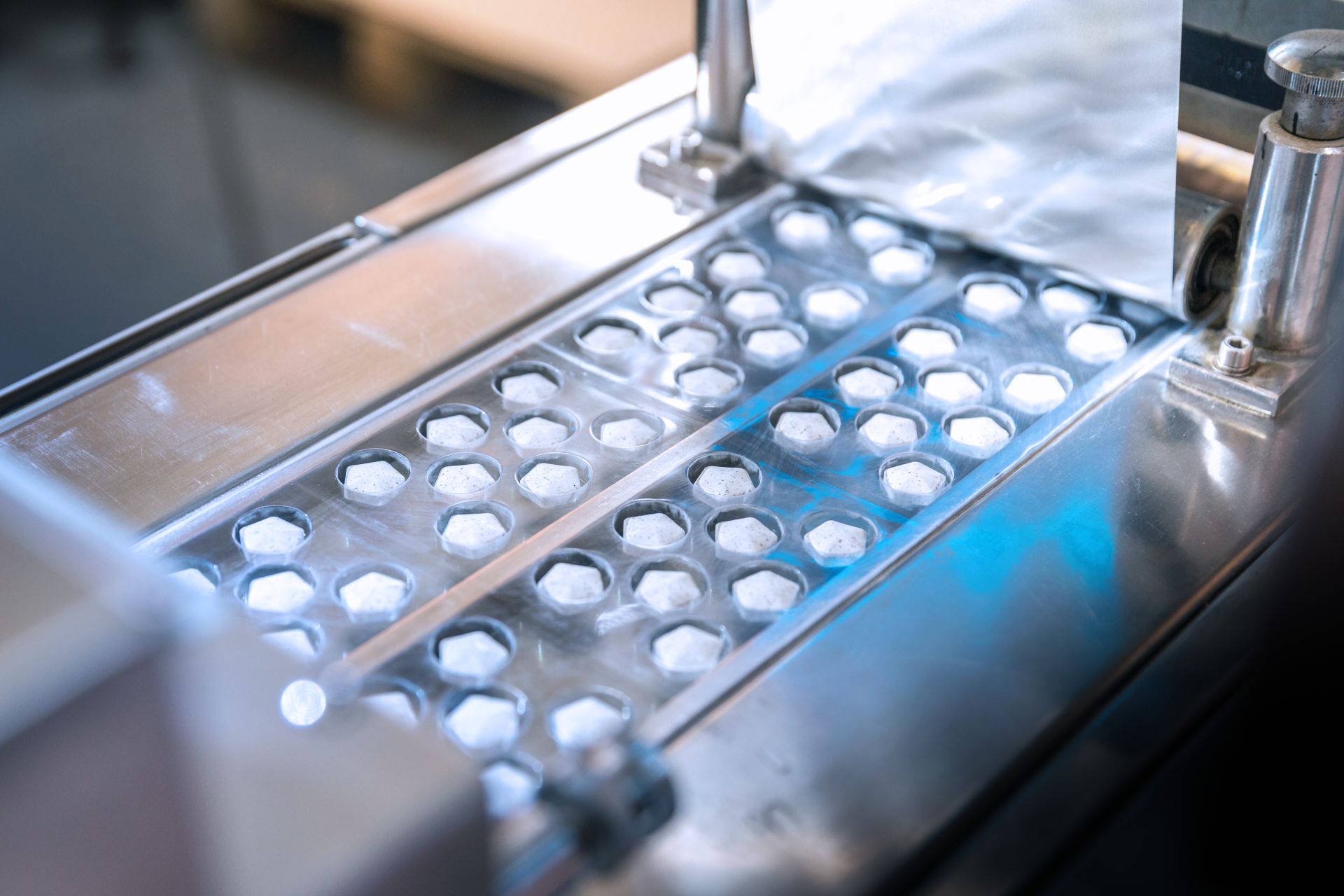

Capsule Blister Packaging / Aluminum-Foil

Our Recommendation
Type SG 、Type S

Characteristics
・Alu-foil and blister laminated
・Sealed by Aluminum-foil to block moisture, avoiding metamorphism
Share:
type S

Type S - Side Bevel Rule

・Straight cutting surface and precise cutting point.
・Suitable for thick materials.

Applications:
Sticky Notes, Leathers, EVA, EPE, Puzzles and Facial Masks

Super Ground Rule

TYPE SG
Bevel type CB (Center bevel) , LCB (Long center bevel)
Thickness 0.53mm (1.5pt)、0.71mm (2pt)、1.06mm (3pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60


Side Bevel Rule

TYPE S
Bevel type SB (Side bevel) , LSB (Long Side bevel)
Thickness 0.71mm (2pt)、1.06mm (3pt)、1.42mm (4pt)
Height 23.60mm (.929"),  23.80mm (.937")
Angle ∠42°、51°、52°
Body hardness HV320,340,380,400,450 / HRC32,34,38,40,45
Edge hardness HV600,640,670,700 / HRC55,58,59,60
