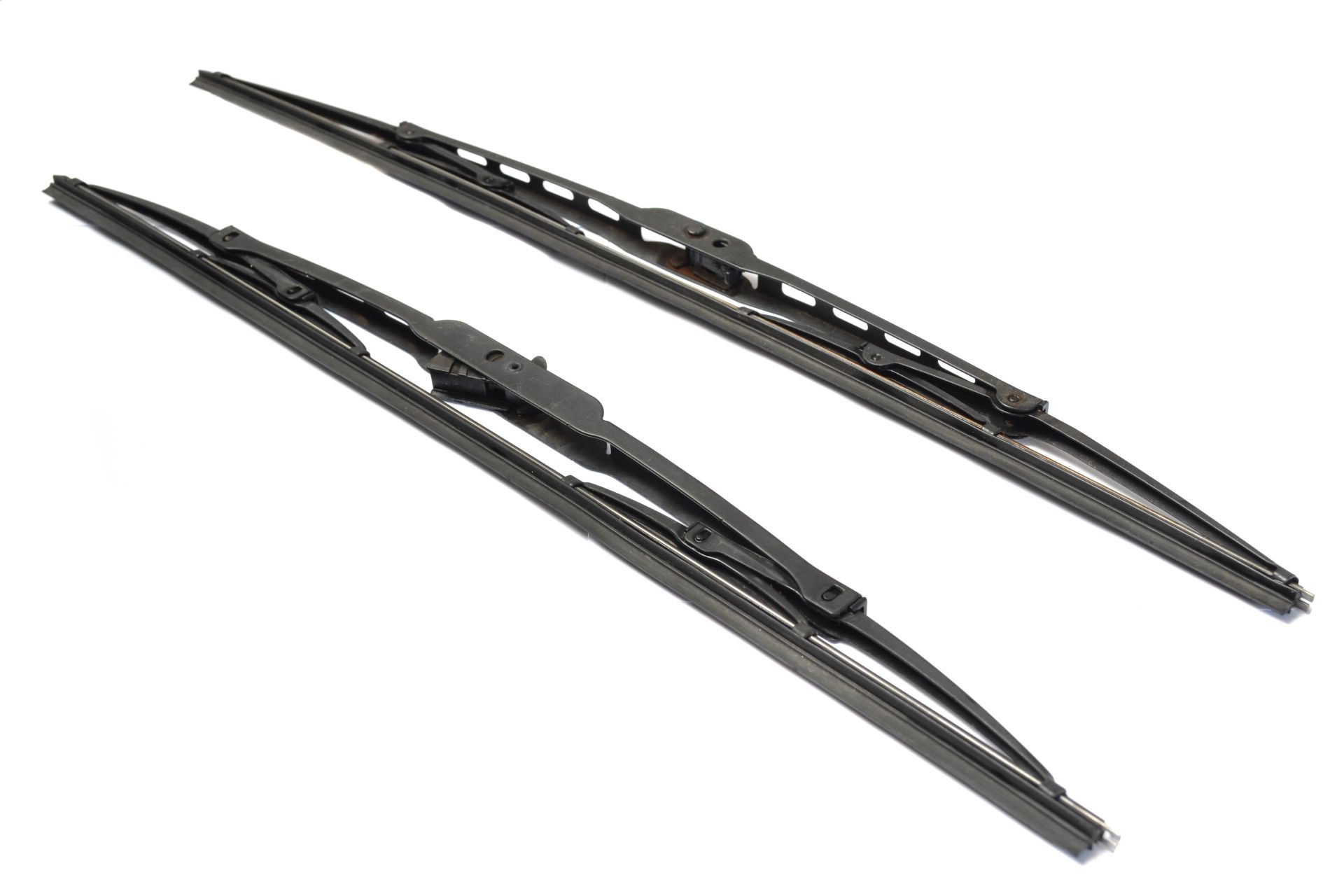

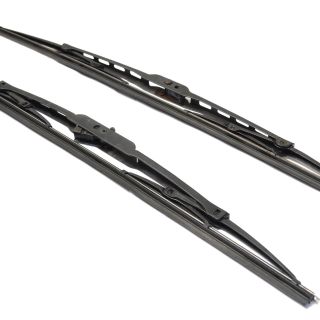

Windshield Wiper

Windshield wipers need to have the right balance of elasticity and pressure to ensure that the wiper blades adhere tightly to the windshield surface and apply pressure evenly. Carbon steel, with its excellent strength and hardness, can withstand high levels of stress and loads while meeting processing conditions. It is the optimal choice for both carbon steel suppliers and cold-rolled steel suppliers.

Share：

Steel Grade & Chemical Composition
Hardness Conversion Table

Carbon Steel		Chemical Conposion(%)
JIS	SAE	C	Si	Mn	P	S	Cu	Ni	Cr
	SAE1020	0.18 ~ 0.23		0.30 ~ 0.60	≦0.030	≦0.050
S20C		0.18 ~ 0.23	0.15 ~ 0.35	0.30 ~ 0.60	≦0.030	≦0.035	≦0.30	≦0.20	≦0.20
S35C		0.32 ~ 0.38	0.15 ~ 0.35	0.60 ~ 0.90	≦0.030	≦0.035	≦0.30	≦0.20	≦0.20
S45C		0.42 ~ 0.48	0.15 ~ 0.35	0.60 ~ 0.90	≦0.030	≦0.035	≦0.30	≦0.20	≦0.20
S50C		0.47 ~ 0.53	0.15 ~ 0.35	0.60 ~ 0.90	≦0.030	≦0.035	≦0.30	≦0.20	≦0.20
S55C		0.52 ~ 0.58	0.15 ~ 0.35	0.60 ~ 0.90	≦0.030	≦0.035	≦0.30	≦0.20	≦0.20
	SAE1060	0.55 ~ 0.65		0.60 ~ 0.90	≦0.030	≦0.035
	SAE1065	0.60 ~ 0.70		0.60 ~ 0.90	≦0.030	≦0.035
S65C		0.60 ~ 0.70	0.15 ~ 0.35	0.60 ~ 0.90	≦0.030	≦0.035	≦0.30	≦0.20	≦0.20
S70C		0.65 ~ 0.75	0.15 ~ 0.35	0.60 ~ 0.90	≦0.030	≦0.035	≦0.30	≦0.20	≦0.20
	SAE1074	0.70 ~ 0.80		0.50 ~ 0.80	≦0.030	≦0.035
	SAE1075	0.70 ~ 0.80		0.40 ~ 0.70	≦0.030	≦0.035

Carbon Steel		Hardness	Hardness	Tensile Strength(N/mm²)
JIS	SAE	HV	HRC
	SAE1020
S20C
S35C
S45C
S50C		140 ~ 180		455 ~ 580
S55C		140 ~ 180		455 ~ 580
	SAE1060	140 ~ 180		455 ~ 580
	SAE1065	140 ~ 180		455 ~ 580
S65C		140 ~ 180		455 ~ 580
S70C
	SAE1074
	SAE1075
